Product Details:
|
| Rated Speed: | V≤0.63m/s | Allowable Gross Mass: | ≤450kg |
|---|---|---|---|
| Width Of Guide Rails: | 10mm/16mm | Wheel Diameter: | Φ70mm |
| Color: | Blue | Model: | Guide Shoe |
| Applicable: | Elevator Equipment | Transportation: | Sea Transportation |
| Type: | Guide Shoe | Product: | Guide Shoe |
| High Light: | lift elevator parts,lift traction machine |
||
Villa Eelvator Guide Shoe Rated Speed V≤0.63m/s / Allowable gross mass ≤450kg Lift Parts Factory direct sale

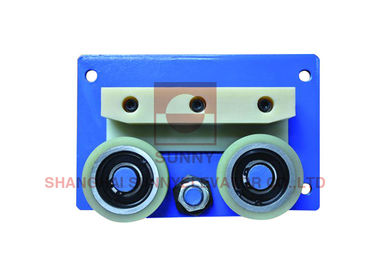

VILLA ELEVATOR GUIDE SHOE SN-RGS-H06( Φ70B)-Character description
It is mainly used in high speed elevators, and also can be used in medium speed elevators. It is a device to ensure the cage running up and down.
Sliding friction replaces sliding friction, reduces friction loss, reduces vibration and noise in operation, and improves ride comfort.
Excellent workmanship ensures robust multiplication
| Rated Speed | Allowable gross mass | Width of guide rails | Wheel diameter |
| V≤0.63m/s | ≤450kg | 10mm/16mm | Φ70mm |

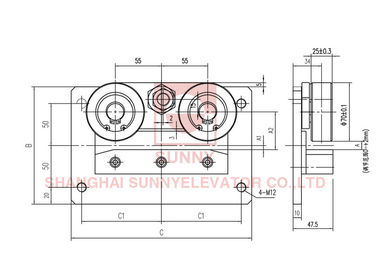

| GUIDE RAIL WIDTH | A | A1 | A2 | B | C | C1 |
| T=10 | 10 | 5 | 45 | 140 | 215 | 95 |
| T=16 | 16 | 8 | 51 | 143 | 240 | 105 |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
