Outdoor 12° Escalators And Moving Walkways Speed 0.5m / S For Supermarket

Outdoor 12° Escalators And Moving Walkways Speed 0.5m / S For Supermarket

    • Outdoor 12° Escalators And Moving Walkways Speed 0.5m / S For Supermarket
    • Outdoor 12° Escalators And Moving Walkways Speed 0.5m / S For Supermarket
  • Outdoor 12° Escalators And Moving Walkways Speed 0.5m / S For Supermarket

    Product Details:

    Place of Origin: China
    Brand Name: SUNNY
    Certification: CE,ISO9001
    Model Number: Moving Walk

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: $7000~12000
    Packaging Details: container
    Delivery Time: 15~30 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 Set/ Year
    Contact Now
    Detailed Product Description
    Name: 12° Moving Walks Dip Angle α: 12°
    Speed: 0.5m/s Traveling Height: 1000-3000
    Motor Capacity: 5.5kw Supply: 380VAC 50Hz

    Outdoor 12° Escalators And Moving Walkways Speed 0.5m / S For Supermarket



    Motor capacity
    (KW)
    Traveling height
    H
      Traveling height
    H

    1000-3000 5.5 1000-3200 5.5
    3000-4000 7.5 3300-4200 7.5
    4100-4200 8 4300-4400 8
    4300-6800 11 4500-7000 11
    6900-9000 15 7100-9200 15
    Center
    supporting
    height H1
    When the traveling height
    2600<H<5800,we deed to use one
    center support.And supporting height is
    H1=H/2-780.
    Center
    supporting
    height H1
    Center
    supporting
    height H2
    When the traveling height
    5800<H<7800,we deed to use two center
    supports.The traveling height of first one
    is H1=H/3-881,and second one is
    H2=2H/3-681.
    Power supply
    Use needs to supply 380V AC 50Hz three-phase five-wire power supply. Voltage should ≤10 when
    moving walk at the start and the voltage should be ≤5 in normal operation,Maximum starting current
    should less than3.5 times of rated current.



    Technical notes
    Dip angle α 12°
    Speed V 0.5m/s
    Step width A 1000 800
    Handrail inner side distance
    B
    1158 958

    Handrail center distance

    C

    1238 1038
    Moving walk outside width
    D
    1600 1400

    Supporting beam length

    E

    1660 1460
    Exterior barrler width
    F
    2310 2110
    Pit width G 1660 1460
    Support opposite force
    R1[kN]
    0.009xL11+22 0.0078xL11+19
    Support opposite force
    R2 [kN]
    0.009xL12+10 0.0078xL12+9

    Support opposite force

    R3 [kN]

    0.0117x[L1+L2] 0.01014x[L1+L2]

    Support opposite force

    R4 [kN]

    0.0117x[L2+L3] 0.01014x[L2+L3]



    Notes

    1 .When the moving walk is installed in the second floor and above, pit is canceled. And the bottom
    and exit of construction should be symmetrical.

    2.sufflcient unblocked space is needed at entrance
    and exit of moving walk. The width should not less than 1310 and the depth from handrail belt
    swerving edge lo any barrier should not less than 2500.

    3. the distance between moving walk and
    any barrier should≥500

    4.User needs Io Supply a earth connection equipment with resistance less
    than 4 ohm.

    5.When the traveling height H≤2600,cancal to support R3, R4.

    6.when the travelling height 2600<H≤5800, we only need to support R3 and L1=L2=L/2

    7.When the traveling height 5800< H≤7800, we only need 10 support R3, R4 and L1=12=13=1/3.

    8.This plan Is current 12°standard moving walk construction size, if the construction can not be executed, please contact Technology Department

    9.The unit in this plan millimeter. We reserve right to change without prior notice.



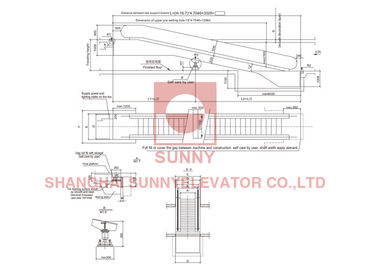

    12° Moving walk construction layout drawing
