Product Details:
|
| Name: | Residential Elevators | People: | ＜5 |
|---|---|---|---|
| Model: | Residential Elevators | Travelling Height: | 12000mm |
| Top Height: | ≥3300mm | Pit Depth: | ≤500mm |
| Elevator Type: | Residential Elevators | Usage: | Passenger Elevators |
| High Light: | high speed lift,airport walking escalator |
||

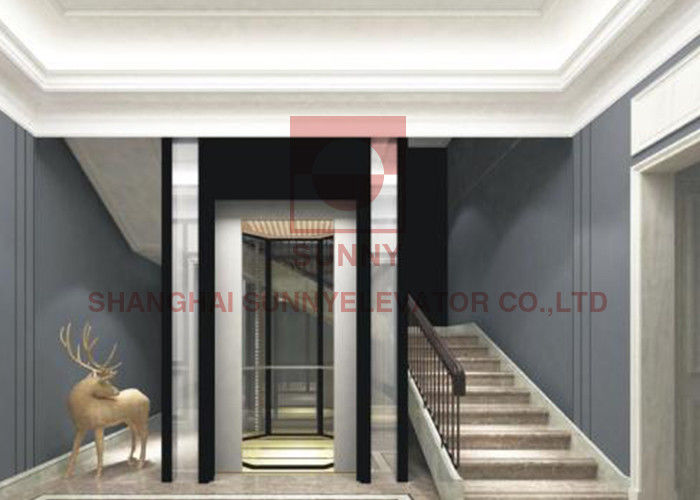

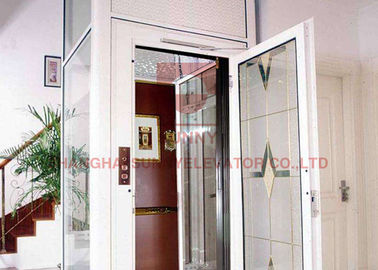

Home / Villa Small Passenger Elevator , Load 250 - 400kg Residential Elevators
A people-oriented design, with elegantly decorated personal space, enhances quality of life in this technical age. Our residential elevators uses limited space. It can provide unrivaled performance, making life more convenient and pleasing. With no machine room, the residential elevators takes up very little space and integrates with the villa to increase its desirability. It increases the status of the building, becoming a status symbol for the owner. At the same time, building costs and space are minimized. Installation is faster with the standard rail installation system. The smooth starting and leveling system enables the elevator to operate more steadily, giving you an extraordinarily comfortable experience. It is the optimum choice for buildings such as luxurious villas, hotels and clubhouses.
*************************************************
For detail information, please contact us.
*************************************************
Home elevator construction parameters
| Load(kg) | 250 | 320 | 400 |
| Speed(m/s) | 0.3-0.4 | ||
| Top floor height(mm) | ≥3300 | ||
| Pit depth(mm) | ≤500 | ||
| Hoistway size(mm) | 1600x1400 | 1700x1400 | 1900x1400 |
| Car size(mm) | 900x1000x2200 | 1000x1000x2200 | 1200x1000x2200 |
| Door opening(mm) | 700x2200(side open) | 700x2000(center open) | |
| Travelling height(mm) | 12000 | ||
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
