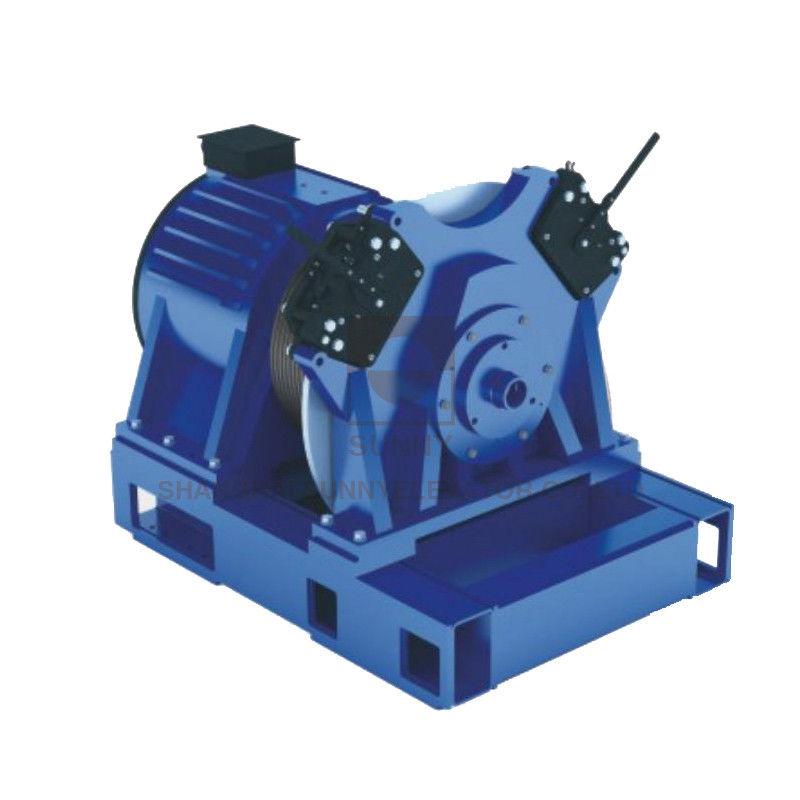

2000kg High Speed Passenger Elevator Lift Traction Machine Motor

2000kg High Speed Passenger Elevator Lift Traction Machine Motor
2000kg High Speed Passenger Elevator Lift Traction Machine Motor 2000kg High Speed Passenger Elevator Lift Traction Machine Motor

Large Image :  2000kg High Speed Passenger Elevator Lift Traction Machine Motor

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: elevator traction machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month

2000kg High Speed Passenger Elevator Lift Traction Machine Motor

Description
Name: Lift Traction Machine Motor Load: 1350~2000kg
Speed: 5m/S~8m/S Traction Ratio: 1:1
Brake: AC220V Supply Voltage: AC380V
Product Name: Elevator Parts Applicable: Elevator Equipment
Model: Lift Traction Machine Motor Product: Lift Traction Machine Motor
High Light:

elevator traction machine

,

lift traction machine

Load 1350~2000kg traction machine for high speed elevator

2000kg High Speed Passenger Elevator Lift Traction Machine Motor



Supply voltage AC380V
Traction ration 1:1
Protection grade IP41
Speed 5m/s~8m/s
Rated capacity 1350kg-2000kg
Brake AC220V,3A*2
Maximum axial load 45000kg



Model Load
(kg)
Speed
(m/s)
Toque
(Nm)
Sheave
Dia.
(mm)
Rope
(mm)
Groove
(pcs)
Distance
Between
Grooves
Power
(kw)
Voltage
(V)
Current
(A)
Frequency
(Hz)
Rated
Speed
(rpm)
Pole
Pairs
1600-500 1600 5.0 3743 710 16 14 20 53.5 380 120 35.7 134 16
1600-600 6.0 64.2 142 42.9 161 16
1600-700 7.0 74.8 168 50.13 188 16
1600-800 8.0 85.6 195 57.33 215 16
2000-500 1600 5.0 4680 710 16 16 20 66.8 380 148 35.7 134 16
2000-600 6.0 80.2 175 42.9 161 16
2000-700 7.0 93.6 215 50.13 188 16
2000-800 8.0 106.8 237 57.33 215 16



PRODUCT DIMENSION DIAGRAMS

2000kg High Speed Passenger Elevator Lift Traction Machine Motor 0



2000kg High Speed Passenger Elevator Lift Traction Machine Motor 1



2000kg High Speed Passenger Elevator Lift Traction Machine Motor 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
