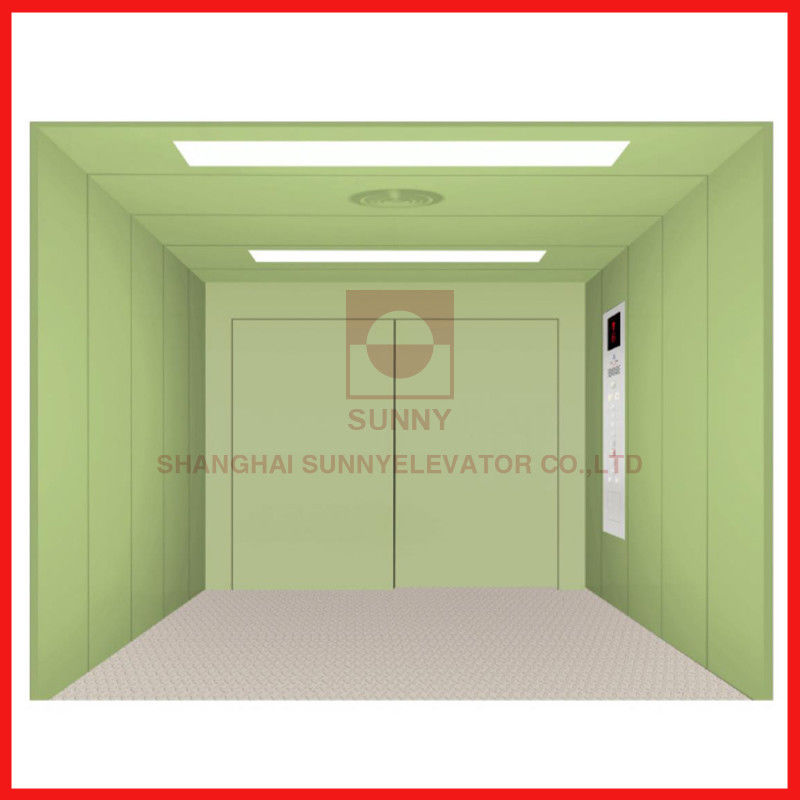

Freight High Speed Elevator Painted Steel Vvvf Variable Frequency Door Machine

Freight High Speed Elevator Painted Steel Vvvf Variable Frequency Door Machine
Freight High Speed Elevator Painted Steel Vvvf Variable Frequency Door Machine
Freight High Speed Elevator Painted Steel Vvvf Variable Frequency Door Machine Freight High Speed Elevator Painted Steel Vvvf Variable Frequency Door Machine Freight High Speed Elevator Painted Steel Vvvf Variable Frequency Door Machine

Large Image :  Freight High Speed Elevator Painted Steel Vvvf Variable Frequency Door Machine

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Freight Elevator
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $7000-12000
Packaging Details: Container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year

Freight High Speed Elevator Painted Steel Vvvf Variable Frequency Door Machine

Description
Name: Freight High Speed Elevator Load: 5000kg
Speed: 0.5m/s PP: 1700mm
Oh: 4800mm Car Size: 2500*3500mm
Drive Type: AC Control System: VVVF Elevator Control System
Model: Freight High Speed Elevator Product: Freight High Speed Elevator
High Light:

airport walking escalator

,

building lifts elevators

Load 5000kg and VVVF variable frequency door machine for freight elevator

Freight High Speed Elevator Painted Steel Vvvf Variable Frequency Door Machine

Freight elevator applies fully computerized modular elevator special-purpose control system, effective and reliable drive mode, soft and sensitive VVVF variable frequency door machine. It can easily, flexibly, competently bear any heavy load under various conditions. High strength car structure, anti-collision strip, setting of light curtain door can satisfy various goods transport uses. It is applicable for different building structures. It creates brand-new goods transport ideas.



Load(kg) Speed(m/s) Car opening size Door open type Car net size Shaft inside dimension Machine roomsize Remarks
(DOxHH)mm (CWxCD)mm (SWxSD)mm PP OH (WxDxH)mm
1000 0.5 1200*2100 Side opening 1500*1600 2400*2100 1500 4500 2400*2100*2500 One-side opening
1000 0.5 1200*2100 Side opening 1500*1600 2400*2100 1500 4500 2400*2100*2500 Opposite door
2000 0.5 1500*2100 Center opening double-folded 1900*2200 2900*2600 1500 4500 2900*2600*2500 One-side opening
2000 0.5 1500*2100 Center opening double-folded 1900*2200 2900*2700 1500 4500 2900*2700*2500 Opposite door
2000 0.5 1500*2100 Side opening 1900*2200 2800*2600 1500 4500 2800*2600*2500 One-side opening
2000 0.5 1500*2100 Side opening 1900*2200 2800*2700 1500 4500 2800*2700*2500 Opposite door
3000 0.5 1600*2100 Center opening double-folded 2000*2800 3200*3300 1600 4500 3200*3300*2500 One-side opening
3000 0.5 1600*2100 Center opening double-folded 2000*2800 3200*3300 1600 4500 3200*3300*2500 Opposite door
3000 0.5 1600*2100 Side opening 2000*2800 3000*3300 1600 4500 3000*3300*2500 One-side opening
3000 0.5 1600*2100 Side opening 2000*2800 3000*3300 1600 4500 3000*3300*2500 Opposite door
5000 0.5 1600*2100 Center opening double-folded 2500*3500 4200*4000 1700 4800 3200*3300*2800 One-side opening
5000 0.5 1600*2100 Center opening double-folded 2500*3500 4200*4000 1700 4800 3200*3300*2800 Opposite door




Frieght Elevator Construction Layout Diagram

Freight High Speed Elevator Painted Steel Vvvf Variable Frequency Door Machine 0

Freight High Speed Elevator Painted Steel Vvvf Variable Frequency Door Machine 1



Freight High Speed Elevator Painted Steel Vvvf Variable Frequency Door Machine 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
