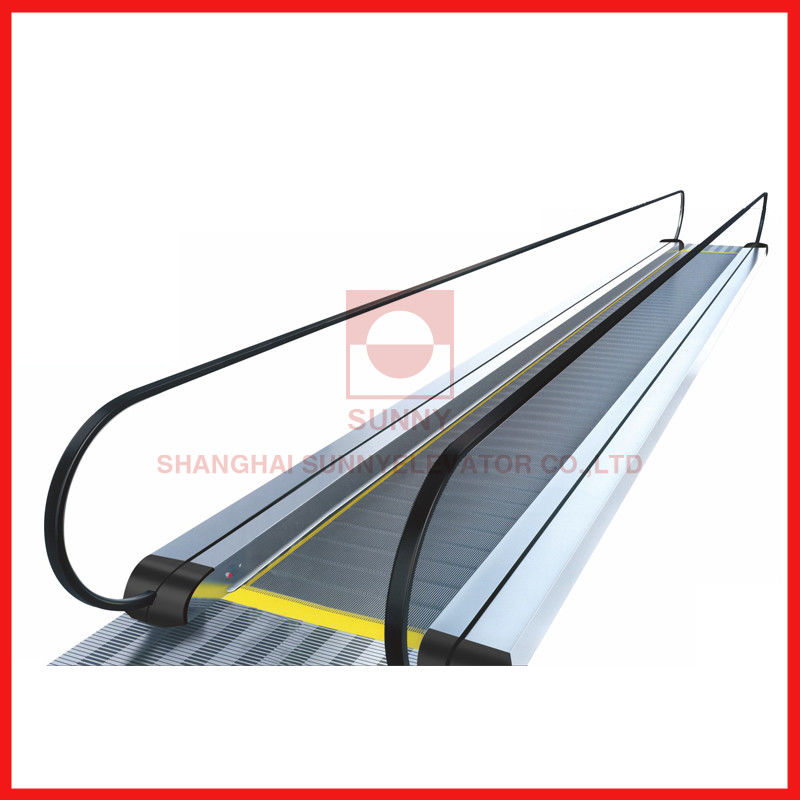

Airport Automatic Moving Walk Escalator Indoor With Vvvf Control Device

Airport Automatic Moving Walk Escalator Indoor With Vvvf Control Device
Airport Automatic Moving Walk Escalator Indoor With Vvvf Control Device
Airport Automatic Moving Walk Escalator Indoor With Vvvf Control Device Airport Automatic Moving Walk Escalator Indoor With Vvvf Control Device Airport Automatic Moving Walk Escalator Indoor With Vvvf Control Device

Large Image :  Airport Automatic Moving Walk Escalator Indoor With Vvvf Control Device

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Moving Walk
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $7000~12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year

Airport Automatic Moving Walk Escalator Indoor With Vvvf Control Device

Description
Name: 0-6° Moving Walk Speed: 0.5m/s
Width Of Pit: 1460mm Motor Power: 8kw
Center Distance Of Handrail: 1038mm Used: Escalator
Usage: Subway/Airport /Shopping Mall Moving Walk Warranty: 12 Months
High Light:

airport walking escalator

,

airport moving walkway

Automatic Indoor Moving Walks with Vvvf Control Device

Configuration of high standard energy saving scheme
Moving walk standard energy-saving inverter,direct drive host, in no one or no load, low-speed operation, realize the energy saving and the highest energy saving up to 30%.

Moving walk standard aluminum pedal
Reduce the overall weight of the moving parts, the same can reduce power consumption. Using the six stage motor with high quality reduction box, the operation efficiency is high, and the mute effect is realized.



*********************************************************
For detail information, please contact us.
*********************************************************

Lifting height H(mm) Speed V Stair width A (mm) Angle of Inclination Power of driving motor(kw) Center distance of handrail B (mm) Width of handrail shape C(mm) Width of pit D(mm)
10000≤L≤80000 0.5 800 0-6 8 1038 1400 1460
80000<L≤110000 11
10000≤L≤80000 0.5 1000 0-6 8 1238 1600 1660
80000<L≤110000 11



0°-6° MOVING WALK CONSTRUCTION SKETCH

Airport Automatic Moving Walk Escalator Indoor With Vvvf Control Device 0

Airport Automatic Moving Walk Escalator Indoor With Vvvf Control Device 1







































































































Airport Automatic Moving Walk Escalator Indoor With Vvvf Control Device 2



Airport Automatic Moving Walk Escalator Indoor With Vvvf Control Device 3

Airport Automatic Moving Walk Escalator Indoor With Vvvf Control Device 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
