Product Details:
|
| Name: | Freight High Speed Elevator | Load: | 630~10000kg |
|---|---|---|---|
| Speed: | 0.25~1.0m/S | Door Opening: | 1100x2100mm |
| Shaft Size: | 2100x1860mm | Pit: | 1500mm |
| Usage: | Car Elevators | Control System: | VVVF Elevator Control System |
| Keywords: | Passenger Elevator Lift | Application: | Commercial Elevator |
| Model: | Freight High Speed Elevator | Type: | Freight High Speed Elevator |
| High Light: | high speed lift,building lifts elevators |
||

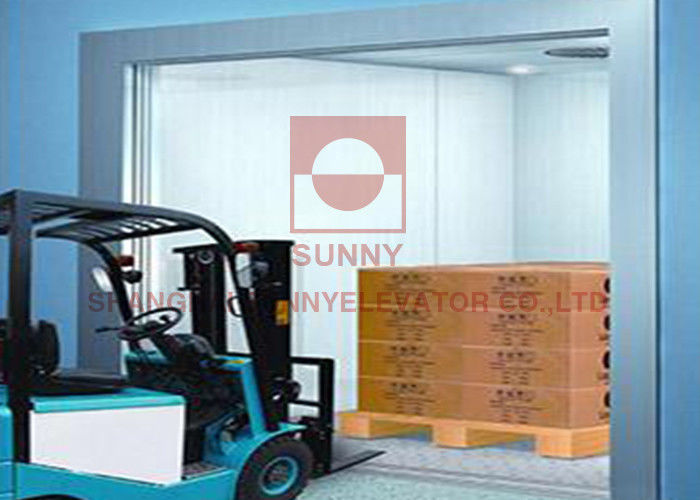

Gear Freight High Speed Elevator Energy Saving With Vvvf / Large Space
Load 630~1000kg for Gear freight elevator with VVVF
Our elevator have gear freight elevator,combined with elevator engineering technology and other toptechnology, strong drive system, high strength of the mechanical structure design, not only can accommodate heavy goods, andcan operation in a variety of harsh environments. It has the advantages of high transmission efficiency, low noise, flat layer precision and so on. In the energy saving control systemthe large carrying capacity, can also achieve energy saving. This elevator is widely used in factories, warehouses, shopping malls and other cargo places.
Strong load-bearing capacity, steady and durable.

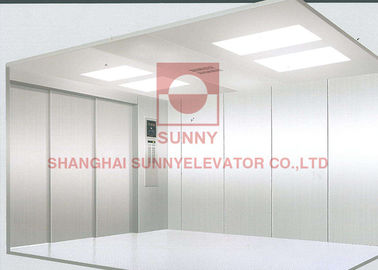

Car walls are specially designed to be shut at the top and the bottom to withstand slight crash from cargoes. High-strength timber frame perfectly matches with the specially strengthened car chassis to achieve strong bearing strength to adapt to carring cases in every loading.
Frequency conversion,smoothly running
VVVF frequency conversion, smoothly adjusts the running speed of lift, which improves the comfort of lift when it runs. In this way, the lift runs steady, levels accurately and low noise.
Freight elevator parameters:
| Load(kg) | Speed(m/s) | Size of car(WxDxH) | Door opening(WxH) | Shaft size | Machine room size | Door open type | |||
| AHxBH | HR.H | PIT | MR.WxMR.D | MR.H | |||||
| 630 | 0.5 | 1200x1500x2200 | 1100x2100 | 2100x1860 | 4200 | 1500 | 2500x3000 | 2200 | Two panel side opening |
| 1000 | 0.5 | 1500x1800x2200 | 1200x2100 | 2250x2160 | 4200 | 1500 | 3000x3000 | 2200 | Two panel side opening |
| 2000 | 0.5 | 1570x2900x2200 | 1500x2100 | 2700x3260 | 4200 | 1500 | 3500x3000 | 2500 | Two panel side opening |
| 1.0 | 4500 | 1500 | |||||||
| 1.5 | 2000x2300x2200 | 2850x2660 | 4500 | 1600 | Four panel side opening | ||||
| 2.0 | 4800 | 1800 | |||||||
| 3000 | 0.25 | 2070x3050x2200 | 1800x2100 | 3300x3410 | 4500 | 1500 | 3800x4200 | 2500 | Four panel side opening |
| 0.5 | |||||||||
| 3200 | 1.0 | 2070x3100x2200 | 1800x2100 | 3300x3460 | 4500 | 1500 | 3800x4200 | 2500 | Four panel side opening |
| 5000 | 0.25 | 2800x3400x2500 | 2000x2200 | 4200x3800 | 5000 | 1600 | 4200x3800 | 2800 | Four panel side opening |
| 0.5 | |||||||||
| 7000 | 0.25 | 3000x4200x2500 | 2600x2400 | 4500x4600 | 5000 | 1600 | 4500x4600 | 2800 | Four panel side opening |
| 0.5 | |||||||||
| 10000 | 0.25 | 3070x5760x2500 | 2600x2400 | 4900x6200 | 5000 | 1600 | 4900x6200 | 2800 | Four panel side opening |
Freight elevator construction parameter:
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
