Product Details:
|
| Name: | Dumbwaiter Elevator | Load: | 100-300kg |
|---|---|---|---|
| Speed: | 0.4m/s | Door Opening Size: | 700*1000mm |
| Car Size: | 700*725mm | Oh: | 2500mm |
| Product: | Dumbwaiter Elevator | Model: | Dumbwaiter Elevator |
| High Light: | high speed lift,building lifts elevators |
||

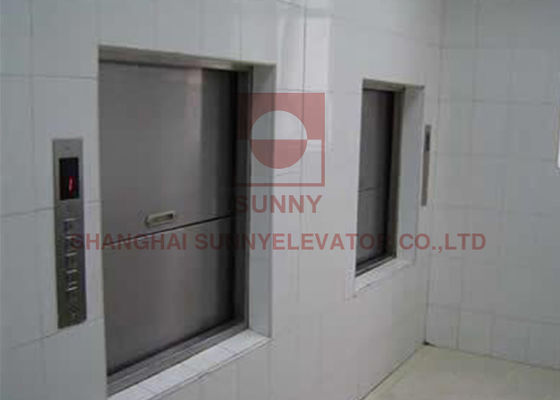

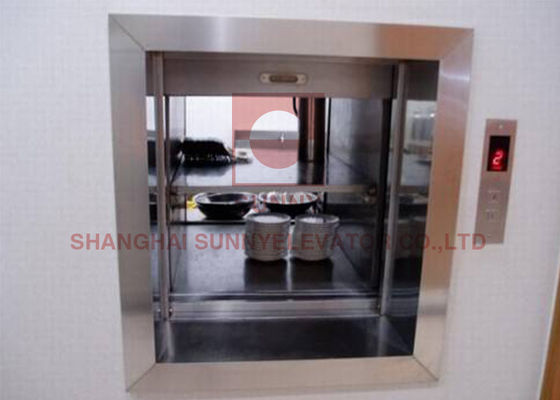

Dumbwaiter / Goods Freight Lift Elevator Speed 0.4m/s With Load 100 - 300kg
Dumbwaiter elevator small flexible, simple structure, can be easily integrated into buildings, for hotels, restaurants, banks, houses, hospitals, library and so on, to providea fast, economic and practical small vertical transportation service of goods.
The high safety standards to service lifts, with excellent quality and novel appearance, in the form of diversification in the service of all kinds of buildings, to enhance people's life better.
*****************************************************
For detail information, please contact us.
*****************************************************
Dumbwaiter elevator construction parameter
| Load(kg) | Speed(m/s) | Door open type | Door opening (JJxHH)mm |
Size of car (AAxBB)mm |
Shaft size(mm) | ||
| AHxBH | PIT | OH | |||||
| 100 | 0.4 | Up/down straight opening | 700x1000 | 700x725 | 1250x925 | 1000 | 2500 |
| 200 | Up/down straight opening | 950x1000 | 950x975 | 1500x1175 | 1000 | 2500 | |
| 250 | Up/down straight opening | 1000x1200 | 1000x1000 | 1550x1200 | 1000 | 2500 | |
| 300 | |||||||
Dumbwaiter Elevator Construction Layout Diagram
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
