High Precision Gearless Traction Machine For Room Less And Small Machine Room

High Precision Gearless Traction Machine For Room Less And Small Machine Room

    • High Precision Gearless Traction Machine For Room Less And Small Machine Room
    • High Precision Gearless Traction Machine For Room Less And Small Machine Room
  • High Precision Gearless Traction Machine For Room Less And Small Machine Room

    Product Details:

    Place of Origin: China
    Brand Name: SUNNY
    Certification: CE,ISO9001
    Model Number: SN-MCG210

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pcs
    Price: $500~1200
    Packaging Details: in Carton Box
    Delivery Time: 7~15 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Name: Permanent Mangnet Synchronous Gearless Traction Machine Load: 800~1000kg
    Speed: 0.5~2.0 M/S Votage: 380V
    Weight: 330kg Roping: 2:1
    Applicable: Elevator Equipment Warranty Time: 12 Months
    Color: Black Red Blue Gray Application: Elevator.lift
    High Light:

    elevator traction machine

    ,

    lift traction machine

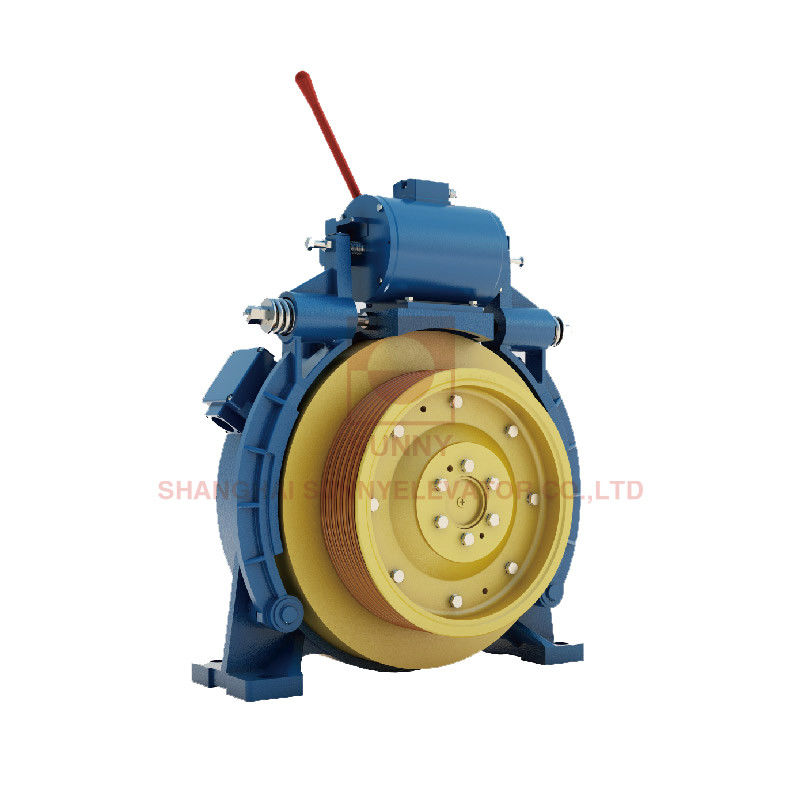

    Gearless Traction Machine for Room-Less and Small Machine Room (SN-MCG210)


    Product Name: Permanent Mangnet Synchronous Gearless Traction Machine (SN-MCG210) Voltage: 380V
    Roping: 2:1 Wrap: Single
    Elv. Load: 800~1000kg Elv. Speed: 0.5~2.0m/s
    Sheave Diam: 400mm Duty: S5-40%ED
    Starts Per Hour: 240st/h Max. Static Load: 4000kg
    Weight: 330kg Brake: DC110V 2X1.4A
    IP Code: IP41 Ins. Class: F



    High Precision Gearless Traction Machine For Room Less And Small Machine Room 0



    Spec Elv Load(kg) Elv Speed(m/s) Sheave Diam(mm) Sheave Groove Current
    (A)
    Power
    (KW)
    Speed
    (r/min)
    Freq
    (Hz)
    Torque
    (N.m)
    Poles Undercut Angle(0)
    800-0.5A 800 0.5 400 5xØ10x15 9 2.7 48 9.6 540 24 95
    800-0.63A 800 0.63 400 5xØ10x15 9 3.4 60 12 540 24
    800-1.0A 800 1.0 400 5xØ10x15 13 5.4 95 19 540 24
    800-1.5A 800 1.5 400 5xØ10x15 20 8.1 143 28.6 540 24
    800-1.6A 800 1.6 400 5xØ10x15 20 8.7 153 30.6 540 24
    800-1.75A 800 1.75 400 5xØ10x15 20 9.4 167 33.4 540 24
    800-2.0A 800 2.0 400 5xØ10x15 24 10.8 191 38.2 540 24
    1000-0.5A 1000 0.5 400 5xØ10x15 11 3.4 48 9.6 670 24
    1000-0.63A 1000 0.63 400 5xØ10x15 11 4.2 60 12 670 24
    1000-1.0A 1000 1.0 400 5xØ10x15 16 6.7 95 19 670 24
    1000-1.5A 1000 1.5 400 5xØ10x15 27 10 143 28.6 670 24
    1000-1.6A 1000 1.6 400 5xØ10x15 27 10.7 153 30.6 670 24
    1000-1.75A 1000 1.75 400 5xØ10x15 27 11.7 167 33.4 670 24
    1000-2.0A 1000 2.0 400 5xØ10x15 29 13.4 191 38.2 670 24



    High Precision Gearless Traction Machine For Room Less And Small Machine Room 1



    High Precision Gearless Traction Machine For Room Less And Small Machine Room 2

    High Precision Gearless Traction Machine For Room Less And Small Machine Room 3
