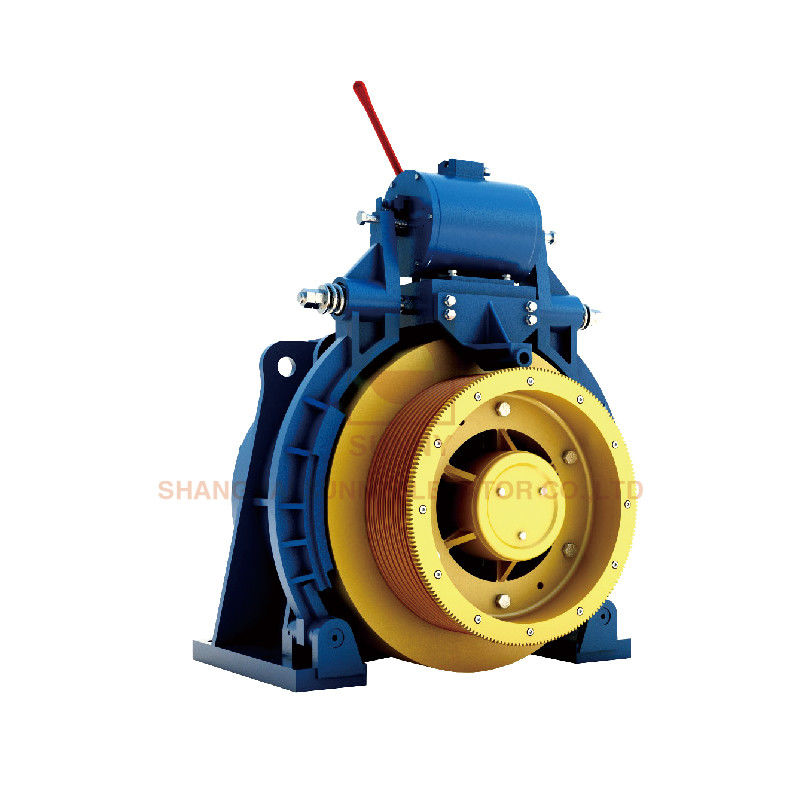

Permanent Mangnet Synchronous Gearless Elevator Machine For Passenger Lift Single Wrap

Permanent Mangnet Synchronous Gearless Elevator Machine For Passenger Lift Single Wrap
Permanent Mangnet Synchronous Gearless Elevator Machine For Passenger Lift Single Wrap Permanent Mangnet Synchronous Gearless Elevator Machine For Passenger Lift Single Wrap

Large Image :  Permanent Mangnet Synchronous Gearless Elevator Machine For Passenger Lift Single Wrap

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-MCG350
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month

Permanent Mangnet Synchronous Gearless Elevator Machine For Passenger Lift Single Wrap

Description
Name: Gearless Elevator Machine Load: 1600~2500kg
Speed: 0.5~4.0m/s Votage: 380V
Weight: 950kg Roping: 2:1
Product Name: Elevator Parts Applicable: Elevator Equipment
Model: Gearless Elevator Machine Product: Gearless Elevator Machine
High Light:

elevator traction machine

,

lift traction machine

Permanent mangnet synchronous gearless traction machine for passenger lift(SN-MCG350)


Product Name: Permanent Mangnet Synchronous Gearless Traction Machine (SN-MCG350) Voltage: 380V
Roping: 2:1 Wrap: Single
Elv. Load: 1600~2500kg Elv. Speed: 0.5~4.0m/s
Sheave Diam: 480mm Duty: S5-40%ED
Starts Per Hour: 240st/h Max. Static Load: 8000kg
Weight: 950kg Brake: DC110V 2X1.7A
IP Code: IP41 Ins. Class: F



Spec Elv Load(kg) Elv Speed(m/s) Sheave Diam(mm) Sheave Groove Current
(A)
Power
(KW)
Speed
(r/min)
Freq
(Hz)
Torque
(N.m)
Poles L
mm
L1
mm
Undercut Angle(0)
1600-0.5A 1600 0.5 480 6xØ12x17 15 5.6 40 8 1330 24 760 249 95
1600-0.63A 1600 0.63 480 6xØ12x17 15 7.0 50 10 1330 24 760 249
1600-1.0A 1600 1.0 480 6xØ12x17 25 11.1 60 16 1330 24 760 249
1600-1.5A 1600 1.5 480 6xØ12x17 40 16.6 119 23.8 1330 24 760 249
1600-1.6A 1600 1.6 480 6xØ12x17 40 17.7 127 25.4 1330 24 760 249
1600-1.75A 1600 1.75 480 6xØ12x17 40 19.4 139 27.8 1330 24 760 249
1600-2.0A 1600 2.0 480 6xØ12x17 48 22.1 159 31.8 1330 24 760 249
1600-2.5A 1600 2.5 480 6xØ12x17 58 27.7 199 39.8 1330 24 760 249
1600-3.0A 1600 3.0 480 10xØ12x15 69 33.3 139 47.8 1330 24 760 249 -
1600-4.0A 1600 4.0 480 10xØ12x15 95 44.3 318 63.6 1330 24 760 249
2000-0.5A 2000 0.5 480 7xØ12x17 19 7.0 40 8 1660 24 760 249 95
2000-0.63A 2000 0.63 480 7xØ12x17 19 8.7 50 10 1660 24 760 249
2000-1.0A 2000 1.0 480 7xØ12x17 30 13.9 80 16 1660 24 760 249
2000-1.5A 2000 1.5 480 7xØ12x17 50 20.7 119 23.8 1660 24 760 249
2000-1.6A 2000 1.6 480 7xØ12x17 50 22.1 127 25.4 1660 24 760 249
2000-1.75A 2000 1.75 480 7xØ12x17 50 24.2 139 27.8 1660 24 760 249
2000-2.0A 2000 2.0 480 7xØ12x17 60 27.6 159 31.8 1660 24 760 249
2000-2.5A 2000 2.5 480 7xØ12x17 73 34.6 199 39.8 1660 24 760 249
2000-3.0A 2000 3.0 480 14xØ12x15 86 41.5 239 47.8 1660 24 830 249 -
2000-4.0A 2000 4.0 480 14xØ12x15 119 55.3 318 63.6 1660 24 830 249
2500-0.5A 2500 0.5 480 8xØ12x17 25 8.7 40 8 2070 24 760 249 90
2500-0.63A 2500 0.63 480 8xØ12x17 25 10.8 50 10 2070 24 760 249
2500-1.0A 2500 1.0 480 8xØ12x17 38 17.3 80 16 2070 24 760 249
2500-1.5A 2500 1.5 480 8xØ12x17 62 25.8 119 23.8 2070 24 760 249
2500-1.6A 2500 1.6 480 8xØ12x17 62 27.5 127 25.4 2070 24 760 249
2500-1.75A 2500 1.75 480 8xØ12x17 62 30.1 139 27.8 2070 24 760 249
2500-2.0A 2500 2.0 480 8xØ12x17 74 34.5 159 31.8 2070 24 760 249
2500-2.5A 2500 2.5 480 8xØ12x17 91 43.1 199 39.8 2070 24 760 249

Permanent Mangnet Synchronous Gearless Elevator Machine For Passenger Lift Single Wrap 0



Permanent Mangnet Synchronous Gearless Elevator Machine For Passenger Lift Single Wrap 1



Permanent Mangnet Synchronous Gearless Elevator Machine For Passenger Lift Single Wrap 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
