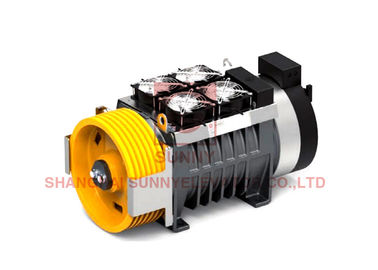

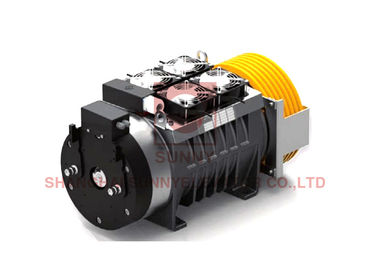

ISO9001 Standard Elevator Electric Motor 220kg DC110V / 2.3A Brake Voltage

ISO9001 Standard Elevator Electric Motor 220kg DC110V / 2.3A Brake Voltage
ISO9001 Standard Elevator Electric Motor 220kg DC110V / 2.3A Brake Voltage ISO9001 Standard Elevator Electric Motor 220kg DC110V / 2.3A Brake Voltage

Large Image :  ISO9001 Standard Elevator Electric Motor 220kg DC110V / 2.3A Brake Voltage

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-MDX26ML
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month

ISO9001 Standard Elevator Electric Motor 220kg DC110V / 2.3A Brake Voltage

Description
Name: Elevator Electric Motor Load: 800~1350kg
Speed: 0.5~2.0m/s Net Weight: 220kg
Static Load: 3400kg Brake Voltage: DC110V/2.3A
Product Name: Elevator Parts Applicable: Elevator Equipment
Model: Elevator Electric Motor Product: Elevator Electric Motor
High Light:

elevator traction machine

,

lift traction machine

Elevator Gearless Traction Machine, Elevator Machine, Load 800~1350kg Lift Motor

ISO9001 Standard Elevator Electric Motor 220kg DC110V / 2.3A Brake Voltage



Load range 800~1350kg
Speed range 0.5~2.0m/s
Static load 3400kg
Sheave Φ240~320mm
Rating S5-40%ED
Net weight 220kg
Encoder ERN1387
Brake torque 2x600Nm
Brake power 253W
Brake voltage DC110V/2.3A
INS.CLASS F
Poles 16
IP code IP41
Trough β=90 y=30



Traction Sheave Ropes
ΦD F Φ min-max Pitch
mm mm mm mm
240 105 6,5/8 6-8 9,5/12
320
79 5-6
114 7-9



No a b c D n F Groove
1 Φ8 12 60 Φ320 5 79 3
2 72 6 114 4
3 84 7 5
4 96 8 6



DIMENSION DRAWING

ISO9001 Standard Elevator Electric Motor 220kg DC110V / 2.3A Brake Voltage 0



ISO9001 Standard Elevator Electric Motor 220kg DC110V / 2.3A Brake Voltage 1



ISO9001 Standard Elevator Electric Motor 220kg DC110V / 2.3A Brake Voltage 2ISO9001 Standard Elevator Electric Motor 220kg DC110V / 2.3A Brake Voltage 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
