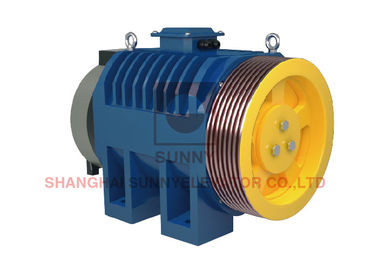

380V Passenger Elevator Lift Motor / Elevator Gearless Motor Single Wrap

380V Passenger Elevator Lift Motor / Elevator Gearless Motor Single Wrap
380V Passenger Elevator Lift Motor / Elevator Gearless Motor Single Wrap 380V Passenger Elevator Lift Motor / Elevator Gearless Motor Single Wrap

Large Image :  380V Passenger Elevator Lift Motor / Elevator Gearless Motor Single Wrap

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-MONA320
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month

380V Passenger Elevator Lift Motor / Elevator Gearless Motor Single Wrap

Description
Name: Elevator Gearless Motor Voltage: 380V
Roping: 2:1 Wrap: Single
Elv.Load: 630-1150kg Elv.Speed: 0.5-1.75m/s
Product Name: Elevator Motor Warranty Time: 12 Months
Model: Elevator Gearless Motor Type: Elevator Gearless Motor
High Light:

elevator traction machine

,

lift traction machine

Load 630-1150kg for passenger lift machine room motor elevator gearless traction machine



Voltage: 380V Duty: S5-40%ED
Roping: 2:1 Starts Per Hour: 180st/h
Wrap: Single Max. Static Load: 3500kg
Elv.Load: 630-1150kg Weight: 300kg
Elv.Speed: 0.5-1.75m/s Brake: DC110V 2.6A
Sheave Diam: 320mm IP Code: IP41
Ins. Class: F



Roping Spec

Elv Load

(kg)

Elv Speed

(m/s)

Sheave Diam

(mm)

Sheave

Groove

Current

(A)

Power

(KW)

Speed

(r/min)

Freq

(Hz)

Torque

(N.m)

Poles

L

(mm)

L1

(mm)

L2

(mm)

Undercut Angle

( )

2:1 630-0.5 630 0.5 320 5xØ8x12 7 4.3 48 12 340 24 550 154 124.5 90
2:1 630-0.63 630 0.63 320 5xØ8x12 7 5.3 60 15 340 24 550 154 124.5
2:1 630-1.0 630 1.0 320 5xØ8x12 10 8.5 95 23.8 340 24 550 154 124.5
2:1 630-1.5 630 1.5 320 5xØ8x12 16 12.7 143 35.8 340 24 550 154 124.5
2:1 630-1.6 630 1.6 320 5xØ8x12 16 13.6 153 38.2 340 24 550 154 124.5
2:1 630-1.75 630 1.75 320 5xØ8x12 16 14.9 167 41.8 340 24 550 154 124.5

Contact us for details



PRODUCT DIMENSION DIAGRAMS

380V Passenger Elevator Lift Motor / Elevator Gearless Motor Single Wrap 0

380V Passenger Elevator Lift Motor / Elevator Gearless Motor Single Wrap 1



380V Passenger Elevator Lift Motor / Elevator Gearless Motor Single Wrap 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
