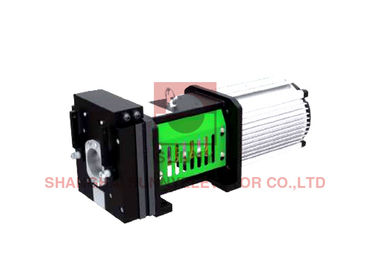

CE Gearless Traction Elevator Motor For Machine Room Less Passenger Elevator

CE Gearless Traction Elevator Motor For Machine Room Less Passenger Elevator
CE Gearless Traction Elevator Motor For Machine Room Less Passenger Elevator CE Gearless Traction Elevator Motor For Machine Room Less Passenger Elevator

Large Image :  CE Gearless Traction Elevator Motor For Machine Room Less Passenger Elevator

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-DX-630
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month

CE Gearless Traction Elevator Motor For Machine Room Less Passenger Elevator

Description
Product Name: Gearless Traction Elevator Motor Weight: 82kg
Brake: DC110V 2*0.6A Max.static Load: 2000kg
Warranty Time: One Year Applicable: Passenger Lift
Product Name: Elevator Parts Voltage: 380V/220V
Model: Gearless Traction Elevator Motor Type: Gearless Traction Elevator Motor
High Light:

elevator traction machine

,

lift traction machine

Elevator Gearless Traction Motor For Machine room less passenger elevator
CE Gearless Traction Elevator Motor For Machine Room Less Passenger Elevator


Load630kg
Voltage220/380v
Suspension2:1
Center height112mm
Weight82kg
Max.static load2000kg
BrakeDC110V 2*0.6A



General datakgm/sVmmPnkWr/minN.mHzVAS5
Load

Lift

speed

Phase

voltage

Sheave

dia

Poles

Traction

belt qty

Rated

power

Rated

speed

Rated

torque

Frequ

ency

Rated

Voltage

Rated

Current

Working

system

SN-DX-630-4-126300.41/220861031.71789114.81699.220%
SN-DX-630-4-346300.43/380861031.71789114.82516.220%
SN-DX-630-6.3-126300.631/220861032.72809223.316313.640%
SN-DX-630-6.3-346300.633/380861032.72809223.3316740%
SN-DX-630-10-126301.01/220861034.2444903716718.840%
SN-DX-630-10-346301.03/380861034.2444903727811.340%


CE Gearless Traction Elevator Motor For Machine Room Less Passenger Elevator 0
 CE Gearless Traction Elevator Motor For Machine Room Less Passenger Elevator 1

CE Gearless Traction Elevator Motor For Machine Room Less Passenger Elevator 2

CE Gearless Traction Elevator Motor For Machine Room Less Passenger Elevator 3

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
