Product Details:
|
| Name: | Side Opening Door | Door Opening: | 600mm-2000mm |
|---|---|---|---|
| Type: | Elevator Parts | Packing: | Wooden Box |
| Voltage: | 220v To 250v | Business Type: | Manufacturer |
| Warranty Time: | One Year | Applicable: | Elevator Equipment |
| High Light: | lift door operator,elevator door components |
||

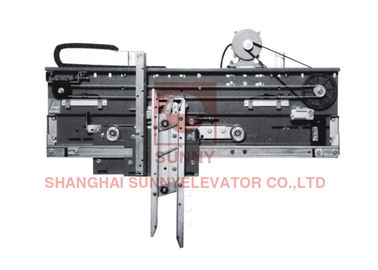

Side opening VVVF door operator (Car top installation) for elevator
1. Using frequency VVVF control technology
2. Motor directly drag synchronous belt transmission
3. Using synchronous door knife,hall closed the car door open always in sync.Door knife in the action of each connection with bearing, flexible door knife action since such as good rigidity, no sliding friction and wear have kept.
4. Applied voltage 220v to 250v 50/60Hz
| JJ | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 |
| A1 | 1030 | 1180 | 1330 | 1480 | 1630 | 1780 | 1930 | 2080 | 2230 | 2380 | 2530 | 2680 | 2830 | 2980 | 3130 |
| B1 | 175 | 225 | 275 | 325 | 375 | 425 | 475 | 525 | 575 | 625 | 675 | 725 | 775 | 825 | 875 |
| C1 | 330 | 380 | 430 | 480 | 530 | 580 | 630 | 680 | 730 | 780 | 830 | 880 | 930 | 980 | 1030 |
| D1 | 660 | 760 | 860 | 960 | 1060 | 1160 | 1260 | 1360 | 1460 | 1560 | 1660 | 1760 | 1860 | 1960 | 2060 |
| D2 | 640 | ||||||||||||||
Side opening VVVF door operator(Car top installation)
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
