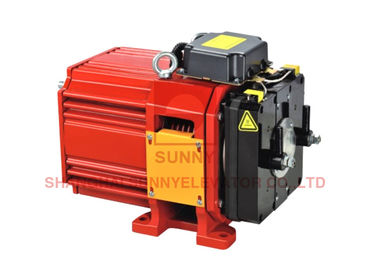

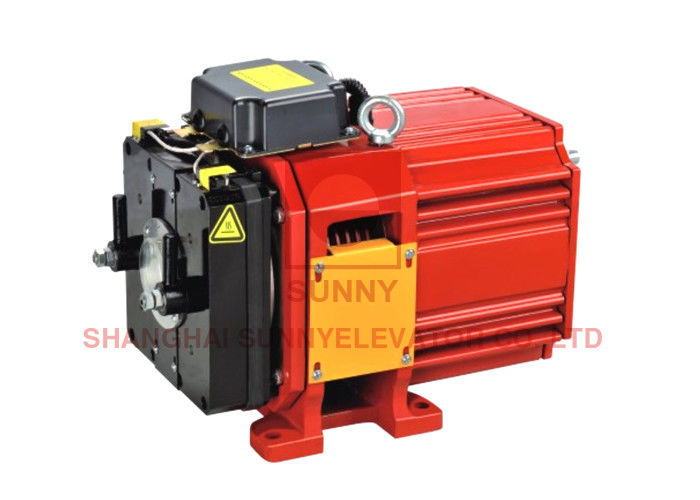

Load 450kg Villa Lift Gearless Elevator Machine For Lift Parts

Load 450kg Villa Lift Gearless Elevator Machine For Lift Parts
Load 450kg Villa Lift Gearless Elevator Machine For Lift Parts Load 450kg Villa Lift Gearless Elevator Machine For Lift Parts

Large Image :  Load 450kg Villa Lift Gearless Elevator Machine For Lift Parts

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: ACT(SAG)-H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month

Load 450kg Villa Lift Gearless Elevator Machine For Lift Parts

Description
Product Name: Gearless Elevator Machin Rope Dia: 8mm
Brake: DC110V Load: 320~450kg
Warranty Time: One Year Sheave Dia: 210mm Or 240mm
Applicable: Elevator Equipment Application: Elevator.lift
Model: Gearless Elevator Machin Product: Gearless Elevator Machin
High Light:

Villa Lift Gearless Elevator Machine

,

Load 450kg Gearless Elevator Machine

Load 320~450kg Home Elevator Motor Gearless Traction Machine for Villa Lift



Characteristics

Load 320kg~450kg Number of Grooves 3-4 Rating S5~40%
Speed 0.4m/s Shape of Groove U Shape Braking Shaft Braking
Suspension 2:1 Y=35° β=96° Voltage of Brake DC110V
Max.Static Load 2000kg Pole pairs 8 Current of Brake 1.0A*2
Rope Dia 8mm Insulation Standard F Encoder Heidenhain 1387-2048
Sheave Dia 210mm or 240mm IP Code IP41



Model

Load

(kg)

Speed

(m/s)

Height

(m)

Torque

(Nm)

Sheave Dia.

(mm)

Rope Dia.

(mm)

Groove

(pcs)

Distance

Between

Grooves

Power

(KW)

Rated

Voltage

(V)

Current

(A)

Frequency

(Hz)

Rated

Speed

(rpm)

ACT(SAG)-H0320.04 320 0.4 ≤25 110 210 8 3 12 0.85 380 5.5 9.73 73
ACT(SAG)-H0400.04 400 0.4 ≤25 140 4 1.1 6.5
ACT(SAG)-H0450.04 450 0.4 ≤25 160 4 1.2 7.5
ACT(SAG)-H0320.04 320 0.4 ≤25 110 3 0.85 220 5.5
ACT(SAG)-H0400.04 400 0.4 ≤25 140 4 1.1 6.5
ACT(SAG)-H0450.04 450 0.4 ≤25 160 4 1.2 7.5
ACT(SAG)-H0320.04 320 0.4 ≤25 128 240 8 3 12 0.85 380 6.2 8.53 64
ACT(SAG)-H0400.04 400 0.4 ≤25 160 4 1.1 7.5
ACT(SAG)-H0450.04 450 0.4 ≤25 180 4 1.2 9
ACT(SAG)-H0320.04 320 0.4 ≤25 128 3 0.85 220 6.2
ACT(SAG)-H0400.04 400 0.4 ≤25 160 4 1.1 7.5
ACT(SAG)-H0450.04 450 0.4 ≤25 180 4 1.2 9



Load 450kg Villa Lift Gearless Elevator Machine For Lift Parts 0

 Load 450kg Villa Lift Gearless Elevator Machine For Lift Parts 1

Load 450kg Villa Lift Gearless Elevator Machine For Lift Parts 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
