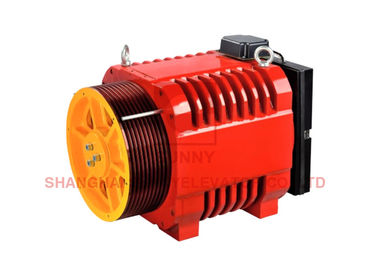

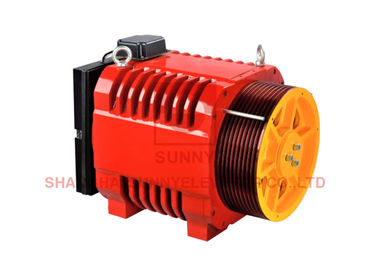

2.5m/S Elevator 450mm Sheave Gearless Traction Machine For Passenger Elevator

2.5m/S Elevator 450mm Sheave Gearless Traction Machine For Passenger Elevator
2.5m/S Elevator 450mm Sheave Gearless Traction Machine For Passenger Elevator 2.5m/S Elevator 450mm Sheave Gearless Traction Machine For Passenger Elevator

Large Image :  2.5m/S Elevator 450mm Sheave Gearless Traction Machine For Passenger Elevator

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: ACT(SAG)-W
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month

2.5m/S Elevator 450mm Sheave Gearless Traction Machine For Passenger Elevator

Description
Product Name: Gearless Traction Machine Current Of Brake: 2.0A*2
IP Code: IP41 Load: 1150kg~2000kg
Speed: 0.5~2.5m/s Sheave Dia: 450mm
Applicable: Elevator Equipment Application: Elevator.lift
Model: Gearless Traction Machine Type: Gearless Traction Machine
High Light:

450mm Sheave Gearless Traction Machine

,

Elevator Gearless Traction Machine

450mm Sheave Gearless Traction Machine Load Capacity 1150kg~2000kg For Elevator

2.5m/S Elevator 450mm Sheave Gearless Traction Machine For Passenger Elevator



What is gearless?
It is needed to further increase the efficiency of transmission which cannot be done using geared transmission Gearless transmission mechanism is capable of transmitting power at any angle without any gears being manufactured.



Characteristics

Load 1150kg~2000kg Number of Grooves 6-10 Rating S5~40%
Speed 0.5~2.5m/s Shape of Groove U Shape Braking Shaft Braking
Suspension 2:1 Y=35° β=96° Voltage of Brake DC110V
Max.Static Load 7000kg Pole pairs 12 Current of Brake 2.0A*2
Rope Dia 10mm Insulation Standard F Encoder Heidenhain 1387-2048
Sheave Dia 450mm IP Code IP41 /

2.5m/S Elevator 450mm Sheave Gearless Traction Machine For Passenger Elevator 0



2.5m/S Elevator 450mm Sheave Gearless Traction Machine For Passenger Elevator 1

 2.5m/S Elevator 450mm Sheave Gearless Traction Machine For Passenger Elevator 2

2.5m/S Elevator 450mm Sheave Gearless Traction Machine For Passenger Elevator 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
