Product Details:
|
| Name: | Closed Guide Rod | Model Name: | Elevator Compensate Chain Guide Device |
|---|---|---|---|
| Used: | Elevator Parts | Warranty Time: | One Year |
| Belong: | Elevator Parts | Drive Mode: | AC |
| Use Of Occasions: | Indoor Type | Guide Rail: | T Guide |
| Type: | Closed Guide Rod | Model: | Closed Guide Rod |
| High Light: | Elevator Lift Closed Guide Rod,ISO9001 Elevator Closed Guide Rod,AC Drive Elevator Closed Guide Rod |
||

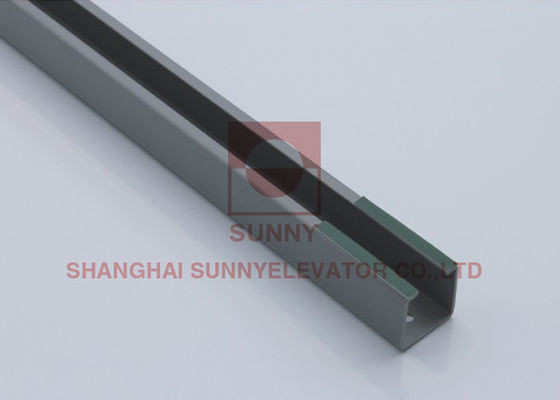

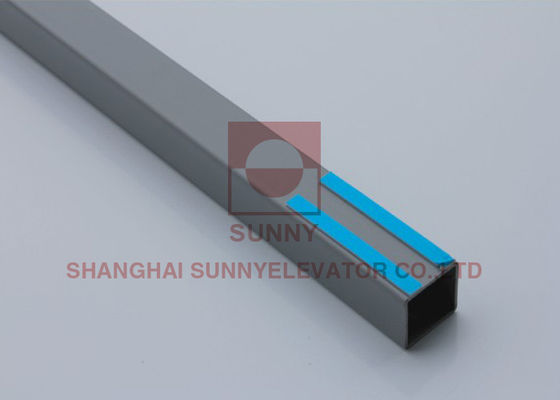

Elevator Lift Closed Guide Bar For Elevator Compensate Chain Guide Device
Technical Parameters
| NO | JJ | A1L | Specification |
| F04A001 | 600-900 | 1370 | 42x36x1370 |
| F04A002 | 950-1050 | 1570 | 42x36x1570 |
| F04A003 | 1100-1300 | 1770 | 42x36x1770 |
| F04A004 | 1250-1300 | 1870 | 42x36x1870 |
| F04A005 | 1400 | 1970 | 42x36x1970 |
 |
|||
| NO | JJ | A1L | Specification |
| F04B001 | 700-900 | 1480 | 42x38x1370 |
| F04B002 | 950-1050 | 1570 | 42x38x1570 |
| F04B003 | 1100-1300 | 1770 | 42x38x1770 |
| F04B004 | 1400 | 1870 | 42x38x1870 |
|
|||
| NO | JJ,HH | L | Specification |
| F04C001 | 700≤JJ≤1000,2000≤HH≤2500 | 1875 | 40.5x34.5x1875BQ |
| F04C002 | 1100≤JJ≤1400,2000≤HH≤2500 | 2095 | 40.5x34.5x2095BQ |
| F04C003 | 1500≤JJ≤1600,2000≤HH≤2100 | 2195 | 40.5x34.5x2195BQ |
| F04C004 | 1500≤JJ≤1600,HH≤2200 | 2290 | 40.5x34.5x2290BQ |
|
|||
