Product Details:
|
| Load: | 850~1800kg | Speed: | 0.5~2.0m/s |
|---|---|---|---|
| Model: | Elevator Parts | Type: | Elevator Machine |
| Warranty Time: | 12 Months | Transportation: | Sea Delivery |
| Product Name: | Elevator Machine | Applicable: | Elevator Equipment |
| Product: | Elevator Machine | ||
| High Light: | Synchronous Lift Elevator Machine,Gearless Lift Elevator Machine,Safety Brake Gearless Traction Machine |
||

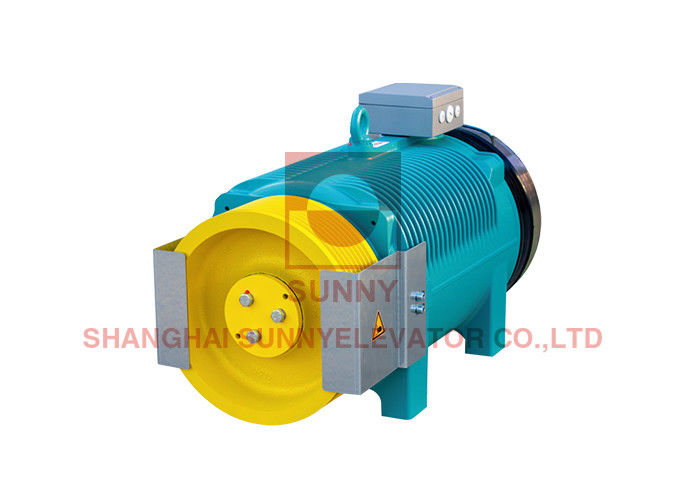

Gearless Synchronous Lift Elevator Machine With Safety Brake System
FEATURES
·Compliant with EN 81-20/50
·Rope tension in all directions
·Modular system allows a lot of options
·Low-vibration and silent thanks to a perfectly matching magnet design
·Solid construction for permissible shaft loads at the traction sheave up to 45 kN
·Safety brake system with electro-magnetical release, manual release as an option,contacts for brake control, dust cover for the brake air gap
·EC type-examination certificate according to EN 81-20/50, can be used for UCM solution
·Synchronous motor, 20-pole, with high-efficiency permanent magnets, insulation class 155 (F)
·Variable options regarding voltage, speed, torque, measuring system and traction sheave parameters
| Motor type | SN-WSG-MF.1 | SN-WSG-MF.2 | SN-WSG-MF.3 | |||||||||||||||
| torque (S3-40 %) MN [Nm] | 500 | 700 | 900 | |||||||||||||||
| max. torque Mmax [Nm] | 950 | 1330 | 1710 | |||||||||||||||
| brake torque Mbr [Nm] | 2x600 | 2x900 | 2x1200 | |||||||||||||||
| traction sheave DT [mm] | 240 | 270 | 320 | 400 | 270 | 320 | 400 | 320 | 400 | |||||||||
| for loads Q [kg] | 1350 | 1275 | 1075 | 850 | 1800 | 1350 | 1200 | 1800 | 1600 | |||||||||
| suspension | table applies for 2 : 1 | |||||||||||||||||
| V(ms) | PN(kW) | IN(A) | PN(kW) | IN(A) | PN(kW) | IN(A) | PN(kW) | IN(A) | PN(kW) | IN(A) | PN(kW) | IN(A) | PN(kW) | IN(A) | PN(kW) | IN(A) | PN(kW) | IN(A) |
| 0.5 | 4.2 | 15.5 | 3.7 | 11.5 | 3.1 | 11.5 | 2.5 | 8.3 | 5.2 | 17.6 | 4.4 | 13.2 | 3.5 | 11.3 | 5.6 | 16.9 | 4.5 | 16.9 |
| 0.63 | 5.2 | 15.5 | 4.7 | 15.5 | 3.9 | 11.5 | 3.1 | 11.5 | 6.5 | 17.6 | 5.5 | 17.6 | 4.4 | 13.2 | 7.1 | 22.9 | 5.7 | 16.9 |
| 1.0 | 8.3 | 19.3 | 7.4 | 19.3 | 6.2 | 15.5 | 5.0 | 15.5 | 10.4 | 26.4 | 8.7 | 21.1 | 7.0 | 17.6 | 11.2 | 26.7 | 9.0 | 22.9 |
| 1.6 | 13.3 | 28.1 | 11.9 | 28.1 | 10.0 | 22.1 | 8.0 | 19.3 | 16.6 | 34.8 | 14.0 | 31.7 | 11.2 | 26.4 | 18.0 | 40.2 | 14.4 | 32.1 |
| 2.0 | 12.5 | 28.1 | 10.1 | 22.1 | 17.5 | 34.8 | 14.0 | 31.7 | 22.5 | 45.5 | 18.0 | 40.2 | ||||||
