Integrated Outside Calling Elevator Panel Board With DC24V Power Supply

Integrated Outside Calling Elevator Panel Board With DC24V Power Supply

Integrated Outside Calling Elevator Panel Board With DC24V Power Supply
Integrated Outside Calling Elevator Panel Board With DC24V Power Supply
Integrated Outside Calling Elevator Panel Board With DC24V Power Supply
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Controller Board
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Packaging Details: Standard Export Package
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs/month
Contact Now
Detailed Product Description
Name: Controller Board Installation Diameter: Φ4
Used: Elevator Parts Original: Yes
Application: Elevator Size: 144*70mm
Power: DC24V Product Name: Blue LCD Display For Elevator
High Light:

Integrated Elevator Panel Board

,

Dia 4mm Integrated Elevator Panel Board

,

Outside Calling Elevator LCD Display

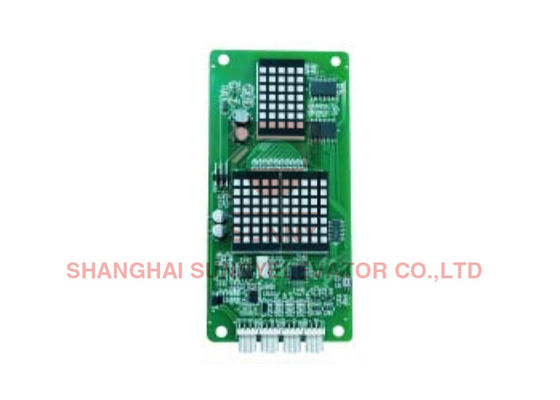

Outside Calling Board With DC24V Power Supply And Using A 1 6-Bit Processor



Outside calling board is an important interactive interface between integrated elevator control system and passenger, receive passenger' s call and indicate the floor, running direction, and other related information.



DC24V power supply, using a 1 6-bit processor
one channel and the main control board communication
CANBUS interface
4 buttons scanning interface for implementing collection of up or down call, fire-fighting switch and key
5* 7 dot LED or LCD screen, display information such as direction, floor, super full load



Appearance Dimensions(mm) Installation Dimensions(mm) Installation Diameter(mm)
144*70 134*56 Φ4





Integrated Outside Calling Elevator Panel Board With DC24V Power Supply 0Integrated Outside Calling Elevator Panel Board With DC24V Power Supply 1



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
