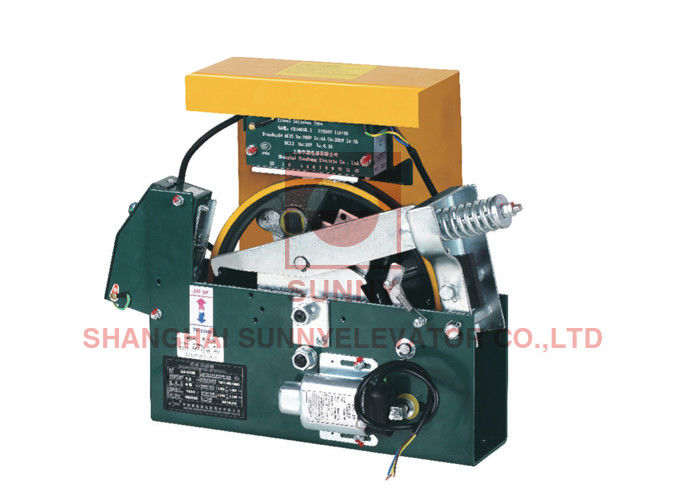

DC24V Elevator Overspeed Governor 500N Pulling With 240mm Sheave

DC24V Elevator Overspeed Governor 500N Pulling With 240mm Sheave
DC24V Elevator Overspeed Governor 500N Pulling With 240mm Sheave
DC24V Elevator Overspeed Governor 500N Pulling With 240mm Sheave DC24V Elevator Overspeed Governor 500N Pulling With 240mm Sheave

Large Image :  DC24V Elevator Overspeed Governor 500N Pulling With 240mm Sheave

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-SG-OX240B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Pcs/ Month

DC24V Elevator Overspeed Governor 500N Pulling With 240mm Sheave

Description
Name: Elevator Overspeed Governor Speed: ≤0.63 M/S
Rope Wheel Diameter: Ф240 Mm Pulling Force: ≥500N
Used: Elevator Parts Model: Elevator Overspeed Governor
Warranty Time: 12 Months Specification: AC220V AC110V DC24V
Type: Elevator Overspeed Governor
High Light:

DC24V Elevator Overspeed Governor

,

500N Pulling Elevator Overspeed Governor

,

240mm Sheave Elevator Overspeed Governor

Elevator Speed Governor / Elevator Speed Control / Elevator Overspeed Governor

DC24V Elevator Overspeed Governor 500N Pulling With 240mm Sheave



Type SN-SG-OX240B
Specification

Covered specifications (Rated speed) :
≤0.63m/s; 1.0m/s; 1.5~1.6m/s; 1.75 m/s;2.0m/s; 2.5m/s
sheave diameter:240 mm
Wire rope diameter: standard 8 mm
Pulling force:≥500N
Tension device: standard 0X-300,optional 0X-200
Work location: Car side or counterweight side
Upward control: permanent - magnet synchronous
traction machine brake,counterweight safety gear
Wire rope brake (machine)
Downward control: safety gear

DC24V Elevator Overspeed Governor 500N Pulling With 240mm Sheave 0





Type SN-SG-OX240E
Specification

Covered specifications (Rated speed) :≤0.63m/s;
sheave diameter:240 mm .
Wire rope diameter: standard 8 mm
Pulling force:≥500N
Tension device: standard 0X-300,optional OX- 200
Power supply voltage: standard AC220V, optional DC24V;
Work location: Car side orcounterweight side
Upward control: permanent- magnet synchronous
traction machine brake,counterweight safety gear,
Wire rope brake (electromagnetic)
Downward control: safety gear
Remote control: operation and electrical switch reset can be
tested electrically; mechanical mechanism can reset automatically

DC24V Elevator Overspeed Governor 500N Pulling With 240mm Sheave 1







DC24V Elevator Overspeed Governor 500N Pulling With 240mm Sheave 2



DC24V Elevator Overspeed Governor 500N Pulling With 240mm Sheave 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
