0.63m/S One Way Elevator Speed Governor For Elevator Safety System

0.63m/S One Way Elevator Speed Governor For Elevator Safety System
0.63m/S One Way Elevator Speed Governor For Elevator Safety System
0.63m/S One Way Elevator Speed Governor For Elevator Safety System 0.63m/S One Way Elevator Speed Governor For Elevator Safety System 0.63m/S One Way Elevator Speed Governor For Elevator Safety System

Large Image :  0.63m/S One Way Elevator Speed Governor For Elevator Safety System

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-SG-OX208(A)
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Pcs/ Month

0.63m/S One Way Elevator Speed Governor For Elevator Safety System

Description
Name: Elevator Speed Governor Speed: ≤0.63 M/S
Rope Wheel Diameter: Ф200 Mm Pulling Force: ≥500N
Used: Elevator Parts Model: Elevator Governor Non-return Machine Roomless
Warranty Time: 12 Months Specification: AC220V AC110V DC24V
Type: Elevator Speed Governor Product: Elevator Speed Governor
High Light:

0.63m/S Elevator Speed Governor

,

500N Pulling Elevator Speed Governor

,

200mm Sheave Elevator Speed Governor

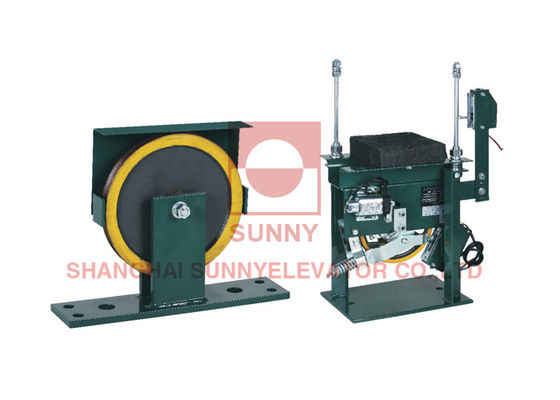

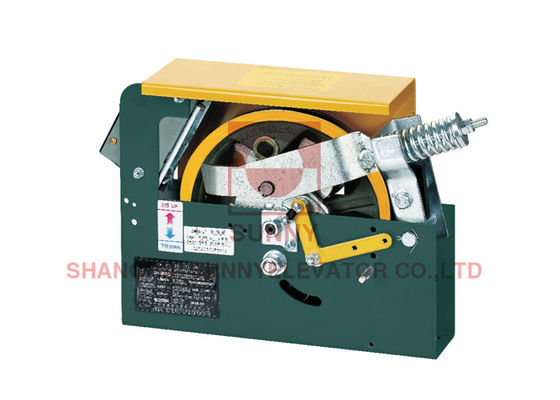

0.63m/s Elevator One-Way Speed Governor For Elevator Safety System



Type SN-SG-OX208(A)
Specification

Covered specifications(Rated speed) :≤0.63m/s; 1.0m/s; 1.5- 1.6m/s; 1.75 m/s
Sheave diameter:200mm
Wire rope diameter:6 mm
Pulling force:≥500N
Tension device: (Form a complete set of matching, need not choose)
Power supply voltage: standard AC220V, optional DC24V;
Work location: Car side or counterweight side
Upward control: permanent -magnet synchronous traction machine brake,
counterweight safety gear
Downward control: safety gear
Remote control: operation and electrical switch reset can be tested electrically;
mechanical mechanism can reset automatically

0.63m/S One Way Elevator Speed Governor For Elevator Safety System 0





Type SN-SG-OX208Q
Specification

Covered specifications(Rated speed) :1.0m/s; 1.5~ 1.6m/s; 1.75 m/s
Sheave diameter:200mm
Wire rope diameter: standard 6 mm
Pulling force:≥500N
Tension device:Standard OX- 200
Work location: Car side/counterweight side
Uplink control: Drive main engine brake
Downward control: safety gear

0.63m/S One Way Elevator Speed Governor For Elevator Safety System 1







0.63m/S One Way Elevator Speed Governor For Elevator Safety System 2



0.63m/S One Way Elevator Speed Governor For Elevator Safety System 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
