Central Opening Elevator Door Operator Permanent Magnet Car Door Operator

Central Opening Elevator Door Operator Permanent Magnet Car Door Operator

Central Opening Elevator Door Operator Permanent Magnet Car Door Operator
Central Opening Elevator Door Operator Permanent Magnet Car Door Operator
Central Opening Elevator Door Operator Permanent Magnet Car Door Operator
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-DM-11X series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Name: Center Opening Door Operator JJ: 650~1200mm
Voltage: ≤AC230V,≤DC110V Certificate: CE,CU-TR
Packing: Wooden Box Applicable: Elevator Equipment
Category: Elevator Parts Product Name: Elevator Door Operator
High Light:

Central Opening Elevator Door Operator

,

Permanent Magnet Car Door Operator

,

AC230V Car Door Operator

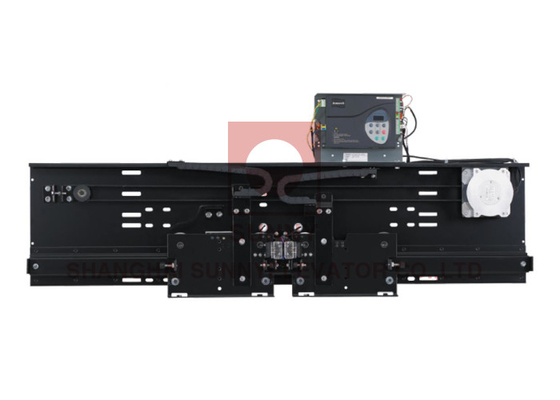

2-Leafs Center Opening Permanent Magnet Asynchronous Door Operator



Serial NO: OMJ-11X/ 12X (On Car Front-Wall Insallation) OMJ-11XA/12XA (Car Top Installation)
OMJ-11XB1 12XB(Straight Beam Installation)
OMJ-11X (Cataphoresis Material) OMJ-12X (Zinc-Plated Material)
Feature:
· With permanent magnet motor, wide torque range, high eficiency, environmental protection, energy saving
· The synchronous belt drive directly, no slip, no lubrication, running smoothly in lower noise
· The asynchronous vane is equipped with door lock function, nstallation on door hanger
· Full-closed-loop control technology, safe, reliable and easy to adjust



2-Leafs Center Opening Permanent Magnet Asynchronous Door Operator(Car Top Installation)

Central Opening Elevator Door Operator Permanent Magnet Car Door Operator 0



JJ 650 700 750 800 850 900 950 1000 1050 1100 1150 1200
A1L 1320 1420 1520 1620 1720 1820 1920 2020 2120 2220 2320 2420
A3L 200 225 250 275 300 325 350 375 400 425 450 475
B2L 870 920 970 1020 1070 1120 1170 1220 1270 1320 1370 1420



2-Leafs Center Opening Permanent Magnet Asynchronous Door Operator(Straight Beam Installation)

Central Opening Elevator Door Operator Permanent Magnet Car Door Operator 1

JJ 650 700 750 800 850 900 950 1000 1050 1100 1150 1200
A1L 1320 1420 1520 1620 1720 1820 1920 2020 2120 2220 2320 2420
A3L 200 225 250 275 300 325 350 375 400 425 450 475



2-Leafs Center Opening Permanent Magnet Asynchronous Door Operator(On Car Front-Wall Installation)

Central Opening Elevator Door Operator Permanent Magnet Car Door Operator 2

JJ 650 700 750 800 850 900 950 1000 1050 1100 1150 1200
A1L 1320 1420 1520 1620 1720 1820 1920 2020 2120 2220 2320 2420
A3L 200 225 250 275 300 325 350 375 400 425 450 475



Central Opening Elevator Door Operator Permanent Magnet Car Door Operator 3



Central Opening Elevator Door Operator Permanent Magnet Car Door Operator 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
