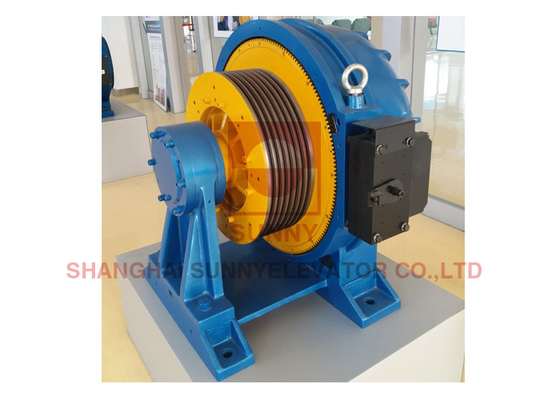

High Torque Modernization Geared Motor 1.0m/S For Lift Elevator

High Torque Modernization Geared Motor 1.0m/S For Lift Elevator
High Torque Modernization Geared Motor 1.0m/S For Lift Elevator

Large Image :  High Torque Modernization Geared Motor 1.0m/S For Lift Elevator

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-WYT- Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month

High Torque Modernization Geared Motor 1.0m/S For Lift Elevator

Description
Name: Geared Motor Load: 800~2000kg
Speed: 1.0~4.0m/s Voltage: AC380V
Protection Grade: IP41 Roping: 2:1
Product Name: Elevator Parts Applicable: Elevator Equipment
Transportation: Sea Delivery Brake: Disc Brake
Model: Geared Motor Type: Geared Motor
High Light:

High Torque Modernization Geared Motor

,

Lift Elevator Modernization Geared Motor

,

Modernization Geared Motor 1.0m/S

High Torque Machine Modernization Geared Motor For Lift Parts

1. Modernization Motor(Elevator traction machine)
2. Speed from 1.0m/s to 2.5m/s
3. Elevator modernisation project to replace old asynchronous machine
4. Low noise, low vibration, smooth running



Features



1. Double support design, reliable mechanical structure with high shaft load;

2. High torque density with high efficiency;

3. Optimized design for winding, lower harmonics, lower noise, low vibration, smooth running;

4. Advanced heat dissipation design, low temperature rise.



Specifications



Traction Machine Parameter Brake Parameter
Voltage AC380V Brake Model BLB
Roping 1:1 Ins. Class F
Wrap Single Voltage DC110V
Capacity 1000kg ~ 1250kg Current 1.98A
Speed 1.0m/s ~ 2.5m/s
Protection Grade IP41
Ins. Class F
Traction machine pole 30
Starts per hour 240 times per hour
Rating S5-40%
Elevator Height ≤120m




DIMENSION DRAWING

High Torque Modernization Geared Motor 1.0m/S For Lift Elevator 0



High Torque Modernization Geared Motor 1.0m/S For Lift Elevator 1



High Torque Modernization Geared Motor 1.0m/S For Lift Elevator 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
