1.75M/S Elevator Guide Shoes 16mm Width Elevator Lift Spare Parts

1.75M/S Elevator Guide Shoes 16mm Width Elevator Lift Spare Parts
1.75M/S Elevator Guide Shoes 16mm Width Elevator Lift Spare Parts
1.75M/S Elevator Guide Shoes 16mm Width Elevator Lift Spare Parts 1.75M/S Elevator Guide Shoes 16mm Width Elevator Lift Spare Parts 1.75M/S Elevator Guide Shoes 16mm Width Elevator Lift Spare Parts

Large Image :  1.75M/S Elevator Guide Shoes 16mm Width Elevator Lift Spare Parts

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE, ISO9001
Model Number: SN-HF-04
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: T.T, Western Union, Paypal, L.C
Supply Ability: 10000pcs/month

1.75M/S Elevator Guide Shoes 16mm Width Elevator Lift Spare Parts

Description
Product Name: Elevator Sliding Guide Shoes Width Of Guide Rail: 5/9/10/16mm
Rated Speed: 1.75 M/s Transportation: Sea Transportation
Applicable: Passenger Elevator Material: 304 Stainless Steel Or Customizable
Warranty Time: 12 Months Type: Elevator Parts
High Light:

1.75M/S Elevator Guide Shoes

,

Elevator Guide Shoes 16mm Width

,

Guide Shoes Elevator Lift Spare Parts

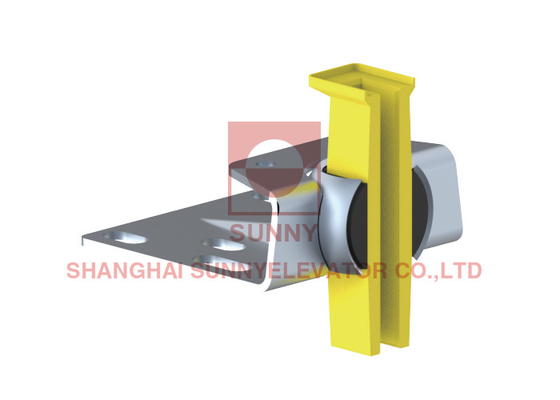

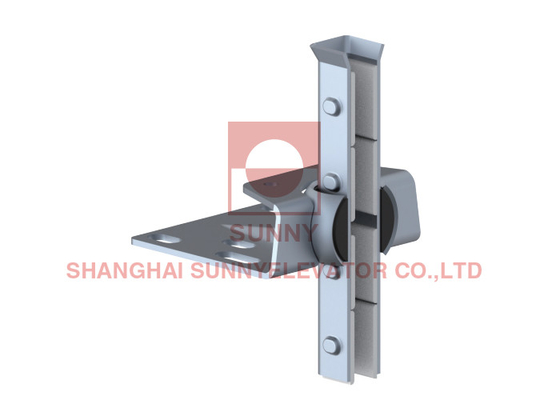

Elevator Joint Sliding Guide Shoes For Elevator Lift Spare Parts



JOINT GUIDE SHOE SERIES

The bush can be rotated at 360 degrees
The structure is simple
Rubber shock absorption
The bush is available in a variety of materials and is suitable for different operating conditions




Type



Rated speed



Rated load
(Reference )

Width of guide rail



Normal operation force

Full load of force

Lubricants

CWT [m/s]

CAR [m/s]

K [mm]

Side pressure

Fx [N]

Normal Pressure

Fy [N]

Side pressure

Fx [N]

Normal pressure

Fy [N]
SN-
HF-04
2.5 1.75 1250kg 5/9/10/16 600 800 800 1700

1.75M/S Elevator Guide Shoes 16mm Width Elevator Lift Spare Parts 0







Type



Rated speed



Rated load
(Reference )
Width of guide rail



Normal operation force
Full load of force Lubricants
CWT [m/s] CAR [m/s] K [mm]

Side pressure

Fx [N]

Normal Pressure

Fy [N]

Side pressure

Fx [N]

Normal pressure

Fy [N]
SN-HF-05 / 2.5 / 9/16 600 800 1000 2000

1.75M/S Elevator Guide Shoes 16mm Width Elevator Lift Spare Parts 1





1.75M/S Elevator Guide Shoes 16mm Width Elevator Lift Spare Parts 2



1.75M/S Elevator Guide Shoes 16mm Width Elevator Lift Spare Parts 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
