Product Details:
|
| Product Name: | Permanent Magnet Synchronous Motor | Speed: | 0.4-1.0 M/s |
|---|---|---|---|
| Weight: | 110KG | Load: | 450KG |
| Power: | 0.75-2.1 KW | Brake: | DC110,1.1A |
| Applicable: | Elevator Equipment | Application: | Elevator.lift |
| Model: | Permanent Magnet Synchronous Motor | Type: | Permanent Magnet Synchronous Motor |
| High Light: | Roping Elevator Permanent Magnet Synchronous Motor,240mm Permanent Magnet Synchronous Motor,Roping Elevator Traction Motor |
||

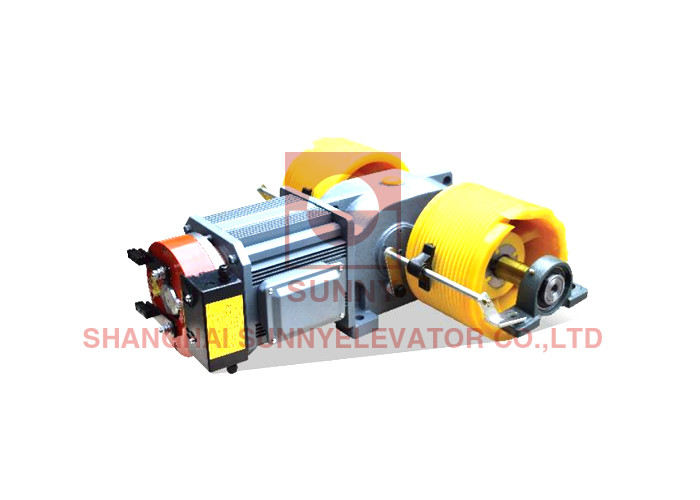

Positive Drive Permanent Magnet Synchronous Motor Specification (Roping 1:1)
Features:
(Static Load): 4500Kg
(Reduction Ratio): 1/10
(Lifting Height): 4.5/8/12m
(Roller Diameter):$240mm
(Rated Load):P+Q=700Kg
(Rope): 2-8
(Brake Vol): DC110V
(Weight): 110kg
(Brake Current): 1.1A
(Gear Lubrication):3.5L
(Roping): 1:1
(Working System): S5-25%
The machine is small in size, low in height,which is suitable for theinstallation of the compound structure floor or lifting platform with smallwell and low top floor height;
The machine is light in weight, the roller is MC nylon wheel, suitable forthe use of ambient temperature between -20 ℃ and 5oC;
The machine can be installed on the top of the well truss, and thebearing blocks at both ends of the roller are fixed on the guide rail;
When the car reaches the top floor, the distance of rope head rod mustbe the same as that of the two rollers rope-out, the wire rope is vertical,the roller minimum rope-out distance is 310/284mm.
| Type | Load(kg) | Speed(m/s) | Power(kw) | Current(A)380V/220V | Speed(rpm) | Frequency(Hz) | Torque(N.m) | Poles | Roller(mm) |
| SN-FX128 | 500 | 0.15 | 0.75 | 3.4/5.8 | 120 | 16 | 600 | 16 | 2-Ø240-Ø8 |
| 600 | 0.15 | 0.9 | 4.1/7.0 | 120 | 16 | 720 | 16 | 2-Ø240-Ø8 | |
| 700 | 0.15 | 1.1 | 4.7/8.2 | 120 | 16 | 840 | 16 | 2-Ø240-Ø8 | |
| 500 | 0.3 | 1.5 | 3.6/6.2 | 240 | 32 | 600 | 16 | 2-Ø240-Ø8 | |
| 600 | 0.3 | 1.8 | 4.4/7.5 | 240 | 32 | 720 | 16 | 2-Ø240-Ø8 | |
| 700 | 0.3 | 2.1 | 5.0/8.7 | 240 | 32 | 840 | 16 | 2-Ø240-Ø8 |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
