Product Details:
|
| Product Name: | Bluelight Hoisting Belt | Max.axle Load: | 630~1600kg |
|---|---|---|---|
| Speed: | 0.25~0.4m/s | Roping Ratio: | 2:1 |
| Ins.class: | 155(F) | Steel Rope: | 10/12 |
| Transportation: | Sea Delivery | Application: | Elevator.lift |
| Model: | Bluelight Hoisting Belt | Product: | Bluelight Hoisting Belt |
| Use: | Bluelight Hoisting Belt | ||
| High Light: | Bluelight Hoisting Belt Traction Machine,Elevator Wire Ropes Belt Traction Machine,Belt Drive Elevator Gearless Traction Machine |
||

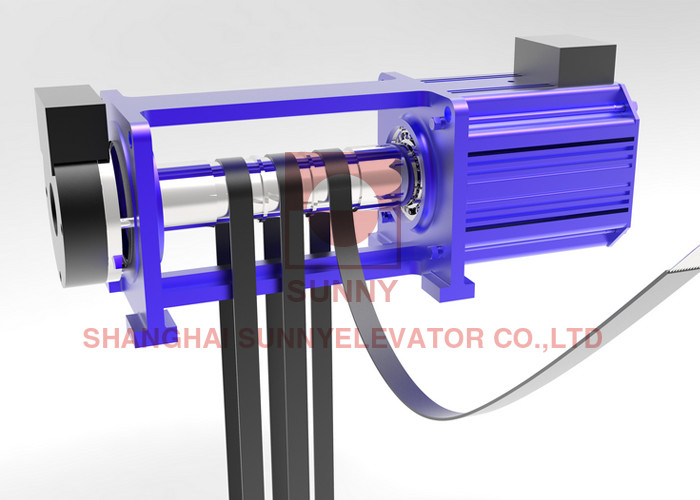

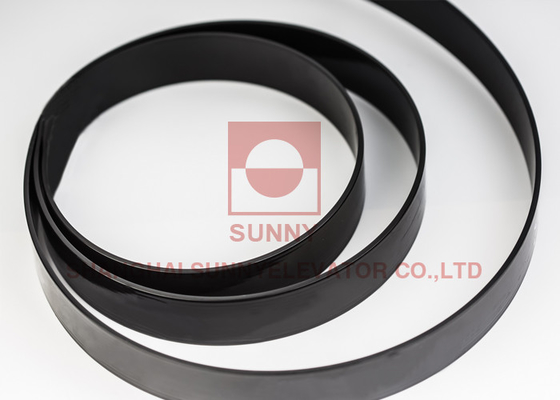

Bluelight Hoisting Belt Traction Machine With Elevator Wire Ropes
Specifications
| Model | 32kN | 43kN | 50kN | 64kN |
| Thickness | 3 | 3.3 | 3.3 | 3.6 |
| Width | 30 | 30 | 30 | 36 |
| No. of Steel Rope | 12 | 10 | 10 | 12 |
*Please refer to specification list for detail
Applications
| Number of belt with different model | |||||
| Load(kg) | Roping Ratio | 32kN | 43kN | 50kN | 64kN |
| 630 | 2:1 | 2 | |||
| 800 | 2:1 | 3 | |||
| 1000 | 2:1 | 4 | 3 | ||
| 1250 | 2:1 | 5 | 4 | 3 | |
| 1600 | 2:1 | 6 | 6 | 4 | 3 |
Calculated by safety factor of 12.
Nominal strength is counted by minimum breaking force with safety margin.
Using 3 belts is the most economic efficiency.
Features
All series produce use BASF Elastogran high hardness TPU, it has excellent mechanical and chemical features.
World class technic to produce high prevision galvanized no joint steel rope, with uniform shaping, high fatigue durability and corrosion resistance.
Great concentration on surface treatment developing, the equivalent friction coefficient is more stable, and capable of handling more complicated working conditions.
Online contour scanning system, real-time monitoring of external dimensions to ensure the same quality of every meter of traction belt.
Traction belt under strict fatigue test during development process. Life time is more than 10 million times bending test.
Unique SITONADHTM surface coating for precise galvanized steel core, the bonding force of the steel core and polyurethane exceeds 8 times the national standard, avoiding the risk of delamination and cracking of the steel belt.
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
