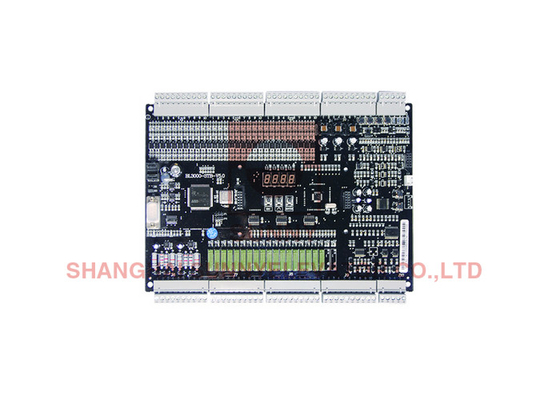

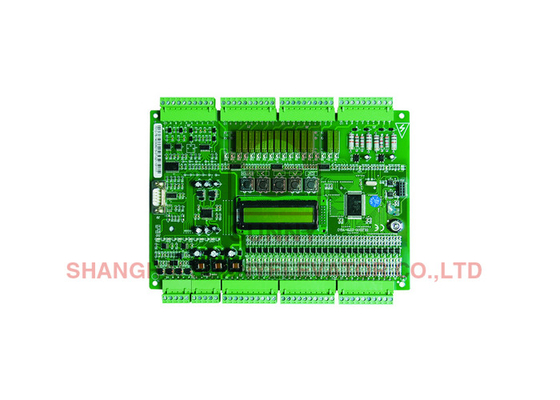

Product Details:
|
| Name: | Serial Main Board | Used: | Elevator Parts |
|---|---|---|---|
| Speed: | 0.25 ~ 4m/s | Application: | Elevator |
| Power: | DC24V | Product Name: | Serial Main Board |
| Warranty Time: | One Year | Business Type: | Manufacturer |
| Model: | Serial Main Board | Type: | Serial Main Board |
| Stops: | 64 Stops | ||
| High Light: | DC24V Residential Elevators Main Board,Passenger Elevators Serial Main Board |
||
Features
1. Dual 32-bit CPU are highly integrated in the control board to guarantee accurate computing and real-time data processing.
2. Double CPU work in master/slave mode. The master CPU process elevator signals and the slave CPU monitors elevator conditions and provides security protection. The redundancy design implements fault tolerance and secure monitoring, thus improving the system reliability.
3. The system is compatible to the BL2000 system and supports more functions to make it more intelligent and open, for example, reserved internet interface, absolute value encoder and build-in expert system for fault self-diagnosis.
4. The board has a large LCD display that can show Chinese or English menus and monitor the elevator operation curve in real time.
5. A handheld operator is available for parameter setting and data dumping. The system also supports parameter setting on the board.
6. The board realizes perfect integration of intelligence, security and foresight.
Specifications
| Main Board | |
| Control | Simplex, duplex and group control for 3-8 elevators (by a group control board) |
| Speed range | 0.25 ~ 4m/s |
| Stops | 64 stops |
| Application | Passenger elevators, bed elevators, residential elevators and panoramic elevators |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
