Product Details:
|
| Name: | Escalator Integration Drive Controller | Rated Capacity: | 8.5~61kVA |
|---|---|---|---|
| Type: | Elevator Parts | Applicable: | Elevator Equipment,Passager Elevator |
| Current: | 13~80A | Packing: | Standard Packing |
| Transportation: | DHL TNT FEDEX | Applicable Elevator: | Elevator Parts |
| Model: | Escalator Integration Drive Controller | Product: | Escalator Integration Drive Controller |
| High Light: | Escalator Integration Drive Controller,80A Escalator Drive Controller,32 Bit Escalator Controller |
||

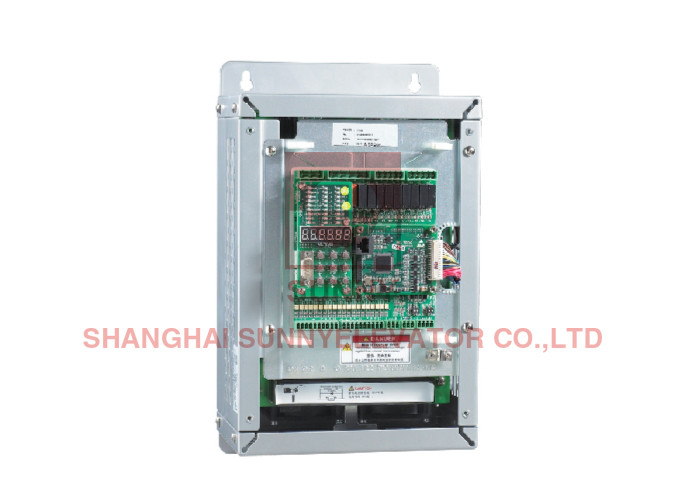

Escalator Integration Drive Controller Combination Of The Escalator Control And Drive
AS330 Series Escalator Integration Drive Controller
Escalator Control System
Product features
.Organic combination of the escalator control and drive,
.Dual 32-bit embedded microcontroller processor to jointly complete the escalator operation and motor drive control
·Redundant safety design and double safety protection by control processor and drive processor, to realize the strongest safetyprotection to the escalator running
.Anti-jamming design exceeds the highest level of industrial design requirements
.The sixth generation new module is used for hardware, and the resistance to junction temperature can reach 175° C, makingthe switching loss lower and the service life longer
.Up and down safety chain fault acquisition boards adopt CAN communication to save cables
.Equipped with CAN communication fault display boards
Specification data
| Model AS330- | Rated capacity(kVA) | Rated output current(A) | Adaptation motor(kW) |
| 4T05P5 | 8.5 | 13 | 5.5 |
| 4T07P5 | 14 | 18 | 7.5 |
| 4T0011 | 18 | 27 | 11 |
| 4T0015 | 24 | 34 | 15 |
| 4T18P5 | 29 | 41 | 18.5 |
| 4T0022 | 34 | 48 | 22 |
| 4T0030 | 50 | 65 | 30 |
| 4T0037 | 61 | 80 | 37 |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
