Product Details:
|
| Product Name: | Gearless Traction Machine Motor | Max.axle Load: | 3500kg |
|---|---|---|---|
| Motor Weight: | 385kg | Working Duty: | S5-60%ED |
| Ins.class: | 155(F) | Brake Type: | DZD1-500 |
| Transportation: | Sea Delivery | Application: | Elevator.lift |
| Model: | Gearless Traction Machine Motor | Product: | Gearless Traction Machine Motor |
| Use: | Gearless Traction Machine Motor | ||
| High Light: | Villa Lift Gearless Motor,800kg Elevator Gearless Traction Motor,2.0m/S Elevator Gearless Traction Machine |
||

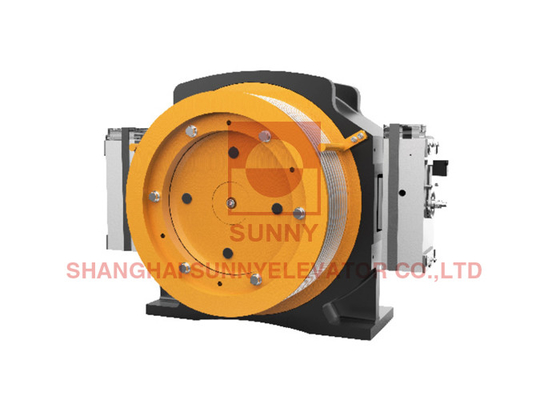

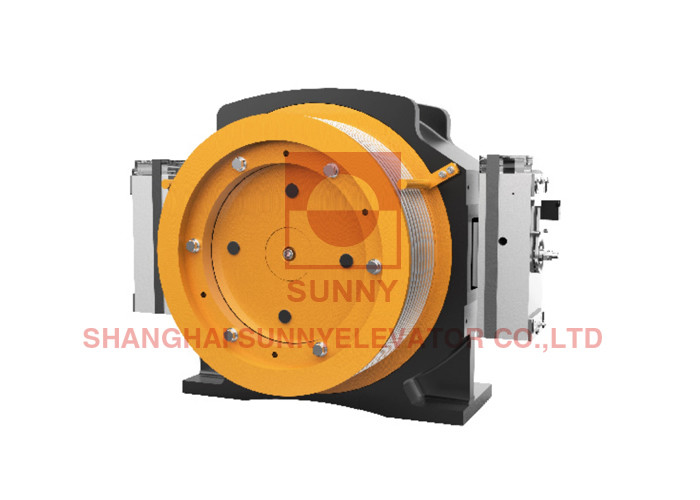

800kg Gearless Traction Machine Motor with 2.0m/s Elevator Parts
Max. axle load:3500kg
Motor weight:385kg
Working duty:S5-40%ED
lns.class:155(F)
Brake type:DZD1-500
Elevator Traction Machine.pdf
| Type | Traction | Load | Elevator | Rated | Rated | Motor | Brake | Sheave | ||||||||||
| Power (KW) | Voltage (V) | Current (A) | Poles (P) | Frequency (Hz) | Current (A) | Voltage (V) | Brake torque (N.m) | Diameter (mm) | Rope nxd | β angle | γ angle | Goover pitche (mm) | ||||||
| SN-GETM3.5H-200/0800 | 2:1 | 800 | 2.0 | 170 | 551 | 9.8 | 340 | 20.6 | 16 | 45.3 | 2x1.1 | DC110V | 2X880 | 450 | 6X10 | 90° | 25° | 15 |
| SN-GETM3.5H-250/0800 | 2.5 | 212 | 12.3 | 25.7 | 56.5 | |||||||||||||
| SN-GETM3.5H-200/1000 | 2:1 | 1000 | 2.0 | 170 | 689 | 12.3 | 340 | 26.5 | 16 | 45.3 | 2x1.1 | DC110V | 2X880 | 450 | 7X10 | 90° | 25° | 15 |
| SN-GETM3.5H-250/1000 | 2.5 | 212 | 15.3 | 34.8 | 56.5 | |||||||||||||
Note 1.Above parameter fos infomation ony final parames tal b a pr O25.2.Quantity of oge gove umber,βangle and angle can be talor made acording to cutomers request.
Remarks:
1.Both hand wind and hand wind-less types are available.
2.The data in the bracket is for the size of hand wind-less type.
3.Remote release device is available, the length of releasing wire ranges 4~10m.
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
