Product Details:
|
Product Name: | Elevator Gearless Traction Machine | Brake: | 2 X 140 Nm |
---|---|---|---|
Output Speed: | 39.18RPM | Model: | Elevator Gearless Traction Machine |
Ratio: | 24.5 | Weight: | 285kg |
Max.Static Load: | 2000kg | Applicable: | Elevator Equipment |
Warranty Time: | One Year | Product: | Elevator Gearless Traction Machine |
Type: | Elevator Gearless Traction Machine | ||
High Light: | Escalator Gearless Traction Machine,Commercial Escalator Gearbox |

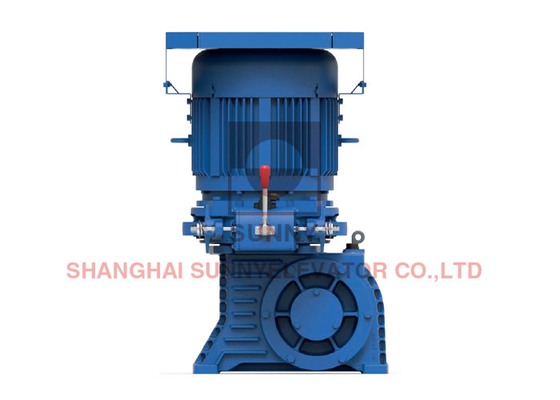

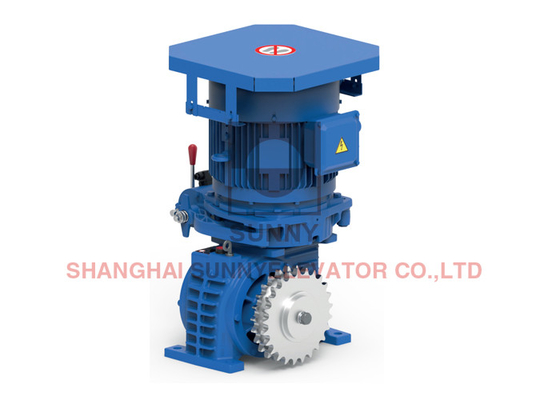

Escalator Gearboxes Use Commercial Service And Efficiency More Than 80%
BRAKE SYSTEM
|
|
Type |
V - Start / hold V |
Date |
207/104 VDC S1 1,12/0,56 A - 232/116 W - 185 OHM
|
Booster power board 230 V |
NOTES |
|
Protection: |
IP55 |
Ambient temperature: |
max 40 °C |
Synthetic oil: |
ISO VG460 |
Brake: |
2 x 140 Nm |
OPTIONAL |
|
Rotation Sensor: |
PNP or NPN |
Worn Sensor: |
24V DC 1A |
Brake Microswitch: |
NO – NC AC15 2A / 250V
DC13 0.25A / 250V
|
Version |
Ratio |
Output speed |
Max torque |
Power |
Efficiency |
Weight |
RPM | Nm | kW | Full load | kg | ||
M73ES-5.5-6P |
24.5 | 39.18 | 1099 | 5.5 | 0.85 | 285 |
M73ES-7.5-6P |
24.5 | 39.18 | 1499 | 7.5 | 0.85 | 285 |
