DC110V 2×2.1A Elevator Gearless Traction Machine For Passenger Lift Parts

Large Image : DC110V 2×2.1A Elevator Gearless Traction Machine For Passenger Lift Parts

Product Details:

Place of Origin:	China
Brand Name:	SUNNY
Certification:	CE,ISO9001
Model Number:	SN-ER5

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pcs
Price:	$500~1200
Packaging Details:	Wooden box
Delivery Time:	7~15 days
Payment Terms:	Western Union, T/T, L/C,Paypal
Supply Ability:	5000 Pcs/ Month

Contact Now

DC110V 2×2.1A Elevator Gearless Traction Machine For Passenger Lift Parts

Description

Product Name:	Elevator Gearless Traction Machine	Voltage:	380V
Suspension:	2:1	Load:	1150~1600KG
Weight:	450kg	Max.Static Load:	5500kg
Applicable:	Elevator Equipment	Warranty Time:	One Year
Model:	Gearless Traction Machine	Product:	Gearless Traction Machine
Type:	Gearless Traction Machine
High Light:	Gearless Passenger Lift Traction Machine , Gearless Traction Elevator Motor DC110V

DC110V 2×2.1A Elevator Gearless Traction Machine For Passenger Lift Parts

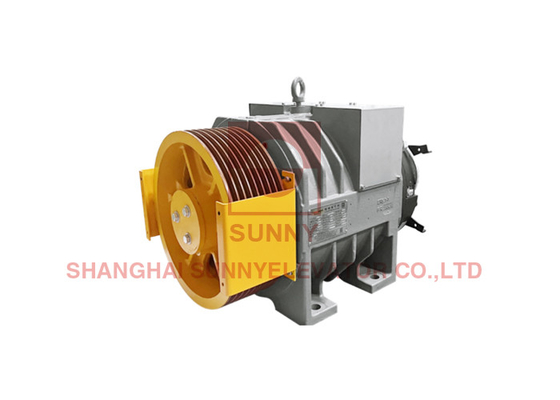

ELEVATOR TRACTION MACHINE
Suspension	2 : 1
Voltage	380V
Pole	20
Rating	S5(40%)
INS. Class	F
IP Code	IP41
FZD15 Brake	DC110V 2×2.1A
Max. Static Load	5500kg
Weight	450kg

DIMENSIONS

DC110V 2×2.1A Elevator Gearless Traction Machine For Passenger Lift Parts 0

TECHNICAL DATA

DC110V 2×2.1A Elevator Gearless Traction Machine For Passenger Lift Parts 1

REMARK

The standard configuration of this machine does not include manual brake release.Customers are required to providetheir own electric brake release device.
The manual brake release is optional to provide if the customer need it.

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
