Product Details:
|
Product Name: | Elevator Gearless Traction Machine | Voltage: | 380V |
---|---|---|---|
Suspension: | 2:1 | Load: | 3000~5000kg |
Weight: | 1900kg | Max.Static Load: | 14000kg |
Applicable: | Elevator Equipment | Warranty Time: | One Year |
Model: | Gearless Traction Machine | Product: | Gearless Traction Machine |
Type: | Gearless Traction Machine | ||
High Light: | Passenger Lift Elevator Gearless Motor,14000kg Elevator Traction Machine |

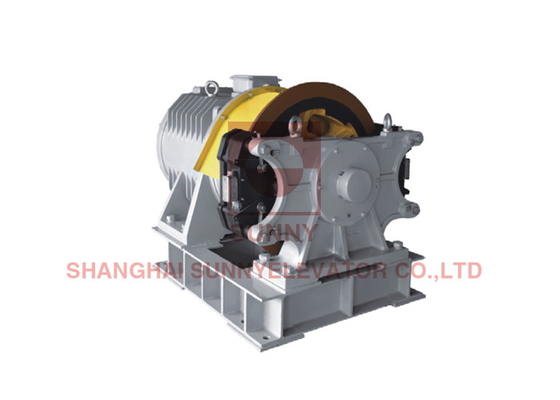

Elevator Gearless Traction Machine SN-GTN2C 14000kg Max. Static Load
Type:SN-GTN2C
ELEVATOR TRACTION MACHINE
|
|
Suspension
|
2:1
|
Voltage
|
380V
|
Pole
|
32
|
Rating
|
S5(25%)
|
INS. Class
|
F
|
IP Code
|
IP41
|
FZD15 Brake
|
DC110V 2x2.2A
|
Max. Static Load
|
14000kg
|
Weight
|
1900kg
|
DIMENSIONS
TECHNICAL DATA
1.The machine can't be configured with the remotemanual brake release.
2.The recommended undercut angle for the grooveof this machine is 105° , and it's optional according topractical condition.

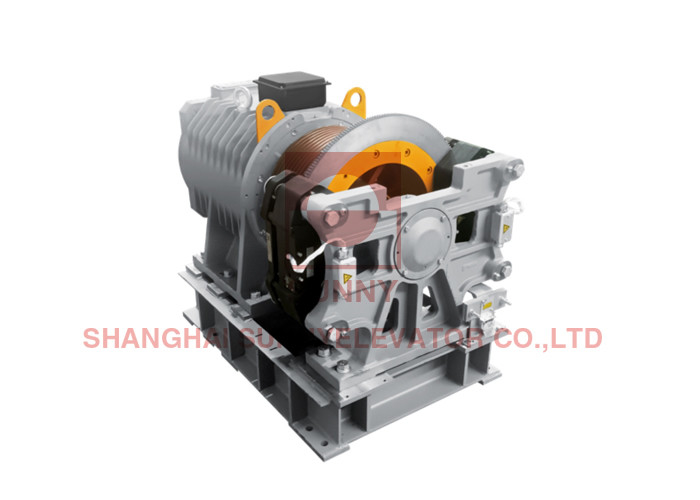

Type:SN-GTN3
ELEVATOR TRACTION MACHINE
|
|
Suspension
|
1:1
|
Voltage
|
380V
|
Pole
|
24
|
Rating
|
S5(60%)
|
INS. Class
|
F
|
IP Code
|
IP41
|
FZD15 Brake
|
DC110V 2X2.2A
|
Max. Static Load
|
36000kg
|
Weight
|
3000kg
|
DIMENSIONS
TECHNICAL DATA
