Product Details:
|
Product Name: | Elevator Gearless Traction Machine | Voltage: | 380V |
---|---|---|---|
Suspension: | 2:1 | Load: | 630~1150kg |
Weight: | 245kg | Max.Static Load: | 3500kg |
Applicable: | Elevator Equipment | Warranty Time: | One Year |
Model: | Gearless Traction Machine | Product: | Gearless Traction Machine |
Type: | Gearless Traction Machine | ||
High Light: | 3500kg Elevator Gearless Traction Machine,Static Load Type Gearless Traction Machine,Elevator Gearless Traction Motor 380V |

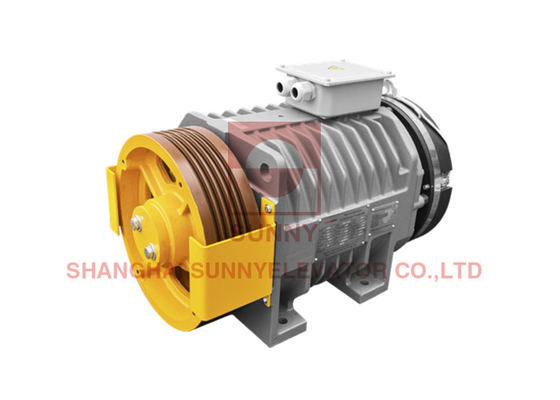

Elevator Gearless Traction Machine SN-ER1L 3500kg Max. Static Load Type
Type:SN-ER1L
ELEVATOR TRACTION MACHINE
|
|
Suspension
|
2:1
|
Voltage
|
380V
|
Pole
|
20
|
Rating
|
S5(40%)
|
INS. Class
|
F
|
IP Code
|
IP41
|
FZD15 Brake
|
DC110V 2x0.9A(2x1.17A)
|
Max. Static Load
|
3500kg
|
Weight
|
245kg
|
DIMENSIONS
TECHNICAL DATA
1.The maximum static load is 300okg when the load is s1050kg.
2. When this machine is used for loading s1050kg, the current of brakes is 2×0.9A,when this machine is used forloading > 1050kg, the current of brakes is 2×1.17A.
3.The standard configuration of this machine does not include manual brake release.Customers are required toprovide their own electric brake release device.
The manual brake release is optional to provide if the customer need it.

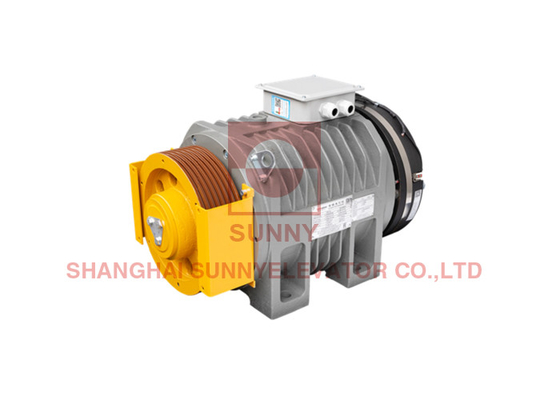

Type:SN-ER2D
ELEVATOR TRACTION MACHINE
|
|
Suspension
|
2:1
|
Voltage
|
380V
|
Pole
|
20
|
Rating
|
S5(40%)
|
INS. Class
|
F
|
IP Code
|
IP41
|
FZD15 Brake
|
DC110V 2X1.8A
|
Max. Static Load
|
3800kg
|
Weight
|
360kg
|
DIMENSIONS
TECHNICAL DATA
REMARK
The standard configuration of this machine does not include manual brake release. Customers are required to providetheir own electric brake release device.
The manual brake release is optional to provide if the customer need it.
