Lift Gearless Traction Machine For Room - Less / Elevator Motor

Lift Gearless Traction Machine For Room - Less / Elevator Motor
Lift Gearless Traction Machine For Room - Less / Elevator Motor Lift Gearless Traction Machine For Room - Less / Elevator Motor Lift Gearless Traction Machine For Room - Less / Elevator Motor

Large Image :  Lift Gearless Traction Machine For Room - Less / Elevator Motor

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE, ISO9001
Model Number: SN-FX240L
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: T.T, Western Union, Paypal, L.C
Supply Ability: 5000pcs/month

Lift Gearless Traction Machine For Room - Less / Elevator Motor

Description
Product Name: Gearless Traction Machine Speed: 0.5-1.0 M/s
Weight: 187-285 KG Sheave: 240 Mm
Load: 630-1350 KG Voltage: 380 V
Power: 2.1-4.1 KW Brake: DC110V, 2.4A
Model: Gearless Traction Machine Type: Gearless Traction Machine
High Light:

elevator traction machine

,

lift traction machine

Lift Machine , Gearless Traction Machine, Load 630-1350 KG , SN-FX240L Serial





Lift Gearless Traction Machine For Room - Less / Elevator Motor 0

  • For room-less and small machine room;
  • Equipped with plate brake, compact structure, small volume;
  • Enough calculated factor of safety and reliable;
  • High efficiency, energy saving;

Lift Gearless Traction Machine For Room - Less / Elevator Motor 1

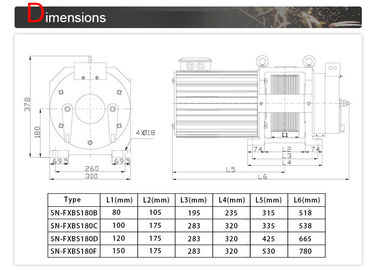

Series Model Number Roping Load(kg) Speed(m/s) Sheave Diam-Rope Diam x Groove No.-Groove Pitch (mm) Power(Kw) IP Code Pole RPM Current(A)
SN-FX240L Serial SN-FX180B 2:1 630 0.5-1.0 Ø240-Ø6x7-10 2.1-4.1 IP41 16 78-156 7.5-9.8
SN-FX180C 2:1 800 0.5-1.0 Ø240-Ø6x9-10 2.6-5.3 IP41 16 78-156 8-10.4
SN-FX180D 2:1 1000 0.5-1.0 Ø240-Ø6x11-10 3.3-6.6 IP41 16 78-156 11-16
SN-FX180E 2:1 1250 0.5-1.0 Ø240-Ø6x14-10 4.1-8.2 IP41 16 78-156 12-18
SN-FX180F 2:1 1350 0.5-1.0 Ø240-Ø6x14-10 4.4-8.8 IP41 16 78-156 14-20



Lift Gearless Traction Machine For Room - Less / Elevator Motor 2

Lift Gearless Traction Machine For Room - Less / Elevator Motor 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
