Product Details:
|
| Load: | 600~1000kg | Voltage: | 220/380V |
|---|---|---|---|
| IP Code: | IP41 | Speed: | 0.3~0.4m/s |
| Brake Vol: | DC110V | INS.Class: | F |
| Roping: | 2:1 | Static Load: | 5000kg |
| Poles: | 16 | Warranty Time: | One Year |
| Model: | Gearless Traction Machine Motor | Name: | Gearless Traction Machine Motor |
| Product: | Gearless Traction Machine Motor | ||
| High Light: | Compact Gearless Traction Machine,Elevator Designs Gearless Traction Machine,Space Saving Gearless Traction Machine |
||
Compact Gearless Traction Machine for Space-Saving Elevator Designs
Patented product: helical gear + permanent magnet motor
一,Features
SN-FAXI268H horizontal dedicated positive drive machine is anupgraded version of SN-FAXI268 series positive drive machine. ltsmain features are as follows:
1,The height of the machine is reduced, and the appearanceof the machine is more beautiful.
2,Reduce the risk of oil leakage from the machine box.
3,The machine installation hole and the roller centerare symmetrical.
| Static load | 5000kg |
| Lifting height | 12/15m |
| Rated load | P+Q=1000kg |
| Brake Vol | DC110V |
| Roping | 1:1 |
| Ratio | 1/8 |
| Diameter | 270mm |
| Rope | 2-Φ8/Φ10 |
| Lubricating oil | 320#-4.5L |
| Weight | 215kg |
Note: 1.The lifting height of Φ8 wire rope is 12m/15m.
2.The lifting height of Φ10 wire rope is 12m.
3.Can provide 380V, P+Q≤1200kg non-standard products.
4.Non-standard products require engineer confirmation.

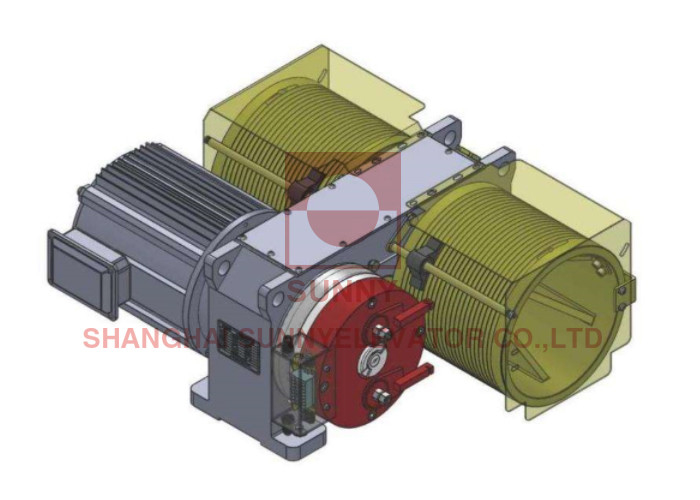

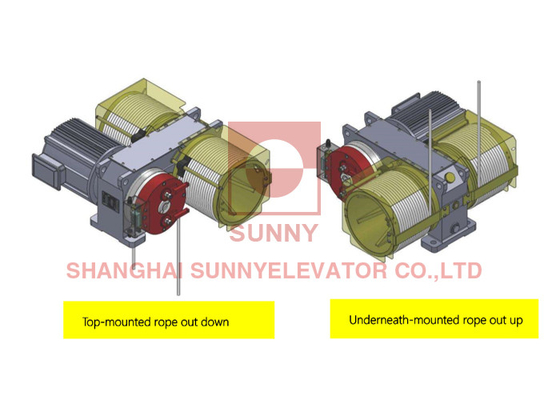

Machine installation diagram
Machine specifications and parameters
| P+Q(kg) | Speed(m/s) | Voltage(V) | Power(kw) | Speed(RPM) | Current(A) | Frequency(Hz) | Pole |
| 600 | 0.3 | 380/220 | 1.8 | 170 | 6.9/11.5 | 22.6 | 16 |
| 700 | 0.3 | 380/220 | 2.1 | 170 | 8.1/12.5 | 22.6 | 16 |
| 800 | 0.3 | 380/220 | 2.4 | 170 | 9.2/13.5 | 22.6 | 16 |
| 900 | 0.3 | 380/220 | 2.7 | 170 | 10.4/15 | 22.6 | 16 |
| 1000 | 0.3 | 380/220 | 3 | 170 | 11.5/16.5 | 22.6 | 16 |
| 600 | 0.4 | 380/220 | 2.4 | 226 | 6.9/11.5 | 30.2 | 16 |
| 700 | 0.4 | 380/220 | 2.8 | 226 | 8.1/12.5 | 30.2 | 16 |
| 800 | 0.4 | 380/220 | 3.2 | 226 | 9.2/13.5 | 30.2 | 16 |
| 900 | 0.4 | 380/220 | 3.5 | 226 | 10.4/15 | 30.2 | 16 |
| 1000 | 0.4 | 380/220 | 4 | 226 | 11.5/16.5 | 30.2 | 16 |
