Product Details:
|
| Name: | Lift Guide Rails | SPEC: | 114*89*16 Mm |
|---|---|---|---|
| Weight: | 85 KG | Type: | Machined Guide Rail |
| Color: | Black | Business Type: | Manufacturer |
| Model: | Lift Guide Rails | Product Name: | Lift Guide Rails |
| High Light: | guide rails for elevators,elevator rails |
||

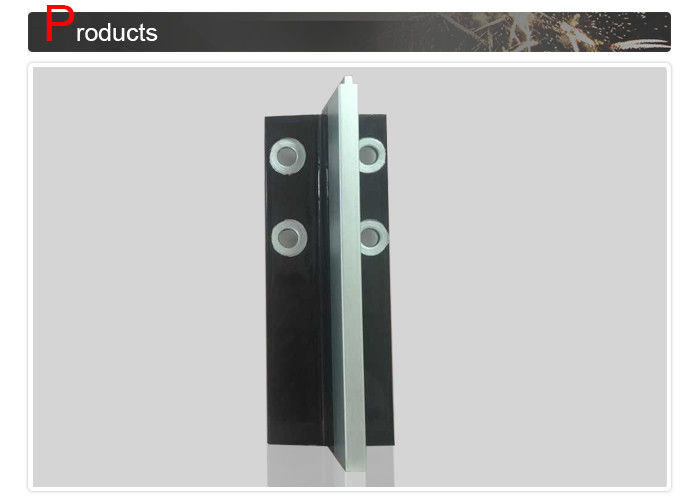

Lift Guide Rails For elevator Guide Rail System in Different Length , SPEC(mm) 114*89*16 , SN-GR-T114/B
Black Guide Rails For Elevators / Guide Rail System In Different Length
1. The elevator guide rail follow ISO7465/2007.
2. Our factory has passed ISO9001:2008.
3. Our products are often exported to Mideast,Southeast Asia,North America,South America,Europe etc.
4. We can supply all kinds of elevator guide rail.
|
Parameter
|
b1 |
h1 |
h |
k |
n |
c |
g |
f |
rs |
m1 |
m2 |
t1 |
t2 |
l |
l1 |
l2 |
b3 |
d |
d1 |
|
Tolerance |
±1.5 |
±0.75 |
±0.1 |
±0.1 |
+3 |
|
±0.75 |
|
|
±0.06 |
0 |
±0.1 |
±0.1 |
+3 |
±0.2 |
±0.2 |
±0.2 |
|
|
|
Type |
|||||||||||||||||||
|
SN-GR-T70/B |
69.85 |
50.2412 |
49.1998 |
15.875 |
25.4 |
9.525 |
7.9 |
11.1 |
3 |
6.4008 |
6.3754 |
7.1374 |
6.35 |
155.96 |
38.1 |
114.3 |
46.0502 |
14.28 |
N/A |
|
SN-GR-T70-1/B |
70 |
65 |
64 |
9 |
34 |
6 |
6 |
8 |
1.5 |
3 |
2.95 |
3.5 |
3 |
128 |
25 |
105 |
42 |
13 |
|
|
SN-GR-T82/B |
82.5 |
68.3 |
66.6 |
9 |
25.4 |
7.5 |
6 |
8.25 |
3 |
3 |
2.95 |
3.5 |
3 |
111 |
27 |
81 |
50.8 |
13 |
26 |
|
SN-GR-T75-3/B |
75 |
62 |
61 |
10 |
30 |
8 |
7 |
9 |
3 |
3 |
2.95 |
3.5 |
3 |
123 |
30 |
90 |
43 |
13 |
26 |
|
SN-GR-T78/B |
78 |
56 |
55 |
10 |
25 |
8 |
7 |
9 |
3 |
3 |
2.95 |
3.5 |
3 |
123 |
30 |
90 |
43 |
13 |
26 |
|
SN-GR-T89/B |
89 |
62 |
61 |
15.9 |
33.4 |
10 |
7.9 |
11.1 |
3 |
6.4 |
6.37 |
7.14 |
6.35 |
156 |
38.1 |
114 |
57.2 |
13 |
26 |
|
SN-GR-T90/B |
90 |
75 |
74 |
16 |
42 |
10 |
8 |
10 |
4 |
6.4 |
6.37 |
7.14 |
6.35 |
156 |
38.1 |
114 |
57.2 |
13 |
26 |
|
SN-GR-T114/B |
114 |
89 |
88 |
16 |
38 |
10 |
8 |
12 |
4 |
6.4 |
6.37 |
7.14 |
6.35 |
156 |
38.1 |
114 |
74 |
17 |
33 |
|
SN-GR-T127-1/B |
127 |
88.9 |
88 |
15.9 |
44.5 |
10 |
7.9 |
11.1 |
4 |
6.4 |
6.37 |
7.14 |
6.35 |
156 |
38.1 |
114 |
79.4 |
17 |
33 |
|
SN-GR-T127-2/B |
127 |
88.9 |
88 |
15.9 |
50.8 |
10 |
12.7 |
15.9 |
5 |
6.4 |
6.37 |
7.14 |
6.35 |
156 |
38.1 |
114 |
79.4 |
17 |
33 |
|
SN-GR-T140-1/B |
140 |
108 |
107 |
19 |
50.8 |
12.7 |
12.7 |
15.9 |
5 |
6.4 |
6.37 |
7.14 |
6.35 |
193 |
31.8 |
152 |
92.1 |
21 |
40 |
|
SN-GR-T140-2/B |
140 |
102 |
101 |
28.6 |
50.8 |
17.5 |
14.5 |
17.5 |
5 |
6.4 |
6.37 |
7.14 |
6.35 |
193 |
31.8 |
152 |
92.1 |
21 |
40 |
|
SN-GR-T140-3/B |
140 |
127 |
126 |
31.8 |
57.2 |
19 |
17.5 |
25.4 |
5 |
6.4 |
6.37 |
7.14 |
6.35 |
193 |
31.8 |
152 |
92.1 |
21 |
40 |
