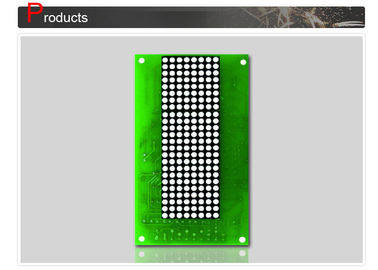

Dot Matrix Display Panel with Elevator LCD Display Green 132 X 70mm

Dot Matrix Display Panel with Elevator LCD Display Green 132 X 70mm
Dot Matrix Display Panel with Elevator LCD Display Green 132 X 70mm Dot Matrix Display Panel with Elevator LCD Display Green 132 X 70mm

Large Image :  Dot Matrix Display Panel with Elevator LCD Display Green 132 X 70mm

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: ISO9001
Model Number: SN-DPC2
Payment & Shipping Terms:
Minimum Order Quantity: 10Pcs
Price: $10~30
Packaging Details: 25Pcs/Carton
Delivery Time: 10 working days
Payment Terms: T.T, Western Union, Paypal, L.C
Supply Ability: 10,000 PCS/Month

Dot Matrix Display Panel with Elevator LCD Display Green 132 X 70mm

Description
Product Name: Elevator LCD Display Display Size: 150x80mm
Visible Size: 140x70mm Customized Function Lay: 9~99,A~Z
Thickness: 19 Mm Color: Red, Yellow, Green And Blue
Input: 7 Segments, BCD Code, Gary Code, Binary Code, ASCII Code Display Life: >50000 Hours
Model: Elevator LCD Display Type: Elevator LCD Display
High Light:

lift lcd display

,

elevator part

Dotmatrix Display Panel , Elevator Display with Competitive Price , Visible Size 132X70mm , SN-DPC2



Dot Matrix Display Panel with Elevator LCD Display Green 132 X 70mm 0

1. At most 99 floor display, with dynamic show to run direction.


2. Various input ways, 7 segments, BCD code, Gary code, Binary code, ASCII code.


3. Display any English letter, like B, overload, inspection, etc.


4. Dot matrix display, color can be red, yellow, green and blue.



5. Visible Size 132x70mm, thickness is 19mm.


We also provide other elevator TFT true color LCD display


Dot Matrix Display Panel with Elevator LCD Display Green 132 X 70mm 1



Display Color

Standard: White letters in blue background
Other color can be customized

Input voltage

DC 16~24 V

Input Signal

Parallel system

Binary code, Decimal Come, BCD Code, Gray Code, 7 segment Code, etc.

Serial system

Canbus, Rs485, Modbus or customized according to user, ect.

Polarity

Common-Cathode or Common-Anode

Display

9~99,A~Z

Function Display

STOP, FULL



Dot Matrix Display Panel with Elevator LCD Display Green 132 X 70mm 2



Dot Matrix Display Panel with Elevator LCD Display Green 132 X 70mm 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
