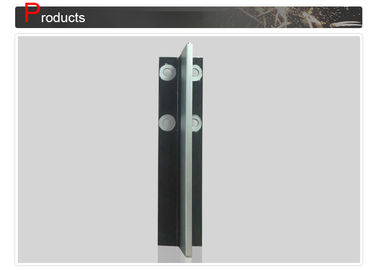

Machined Elevator Guide Rail Clamps CE ISO with SPEC(mm) 70*65*9

Machined Elevator Guide Rail Clamps CE ISO with SPEC(mm) 70*65*9
Machined Elevator Guide Rail Clamps CE ISO with SPEC(mm) 70*65*9 Machined Elevator Guide Rail Clamps CE ISO with SPEC(mm) 70*65*9

Large Image :  Machined Elevator Guide Rail Clamps CE ISO with SPEC(mm) 70*65*9

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-GR-T70/B
Payment & Shipping Terms:
Minimum Order Quantity: 10meter
Price: $2~8/meter
Packaging Details: Wooden box
Delivery Time: 7 working days
Payment Terms: Paypal, L/C, T/T, Western Union
Supply Ability: 15000meters/month

Machined Elevator Guide Rail Clamps CE ISO with SPEC(mm) 70*65*9

Description
Name: Machined Elevator Guide Rail SPEC: 70*65*9 Mm
Weight: 35 KG Type: Machined Guide Rail
Color: Black Used: Car Parts
Model: Machined Elevator Guide Rail Product Name: Machined Elevator Guide Rail
High Light:

guide rails for elevators

,

elevator rails

Hot Guide Rail With Elevator Guide Rail Clamps , SPEC(mm) 70*65*9 , SN-GR-T70/B

Machined Elevator Guide Rail Clamps CE ISO with SPEC(mm) 70*65*9



Machined Elevator Guide Rail Clamps CE ISO with SPEC(mm) 70*65*9 0

1. Our factory has passed ISO9001.



2. The elevator parts  are in high quality.



3. We can provide you all kinds of guide rail.



4. We provide what you want and your satisfaction is our target.





All our guide ails are produced according to ISO7465 international standard. If you have your

own standard, we can also produce according to your specific dimensions. Dimensions

displayed here is only a brief version. If you want details, please contact us.





Machined Elevator Guide Rail Clamps CE ISO with SPEC(mm) 70*65*9 1

Parameter





b1

h1

h

k

n

c

g

f

rs

m1

m2

t1

t2

l

l1

l2

b3

d

d1

            Tolerance

±1.5
±1.52

±0.75
±0.08

±0.1
±0.08

±0.1
±0.08

+3
0



±0.75
±0.6





±0.06
0

0
-0.06

±0.1
±0.08

±0.1
±0.08

+3
0

±0.2
±0.1

±0.2
±0.1

±0.2
±0.1





Type

SN-GR-T70/B

69.85

50.2412

49.1998

15.875

25.4

9.525

7.9

11.1

3

6.4008

6.3754

7.1374

6.35

155.96

38.1

114.3

46.0502

14.28

N/A

SN-GR-T70-1/B

70

65

64

9

34

6

6

8

1.5

3

2.95

3.5

3

128

25

105

42

13



SN-GR-T82/B

82.5

68.3

66.6

9

25.4

7.5

6

8.25

3

3

2.95

3.5

3

111

27

81

50.8

13

26

SN-GR-T75-3/B

75

62

61

10

30

8

7

9

3

3

2.95

3.5

3

123

30

90

43

13

26

SN-GR-T78/B

78

56

55

10

25

8

7

9

3

3

2.95

3.5

3

123

30

90

43

13

26

SN-GR-T89/B

89

62

61

15.9

33.4

10

7.9

11.1

3

6.4

6.37

7.14

6.35

156

38.1

114

57.2

13

26

SN-GR-T90/B

90

75

74

16

42

10

8

10

4

6.4

6.37

7.14

6.35

156

38.1

114

57.2

13

26

SN-GR-T114/B

114

89

88

16

38

10

8

12

4

6.4

6.37

7.14

6.35

156

38.1

114

74

17

33

SN-GR-T127-1/B

127

88.9

88

15.9

44.5

10

7.9

11.1

4

6.4

6.37

7.14

6.35

156

38.1

114

79.4

17

33

SN-GR-T127-2/B

127

88.9

88

15.9

50.8

10

12.7

15.9

5

6.4

6.37

7.14

6.35

156

38.1

114

79.4

17

33

SN-GR-T140-1/B

140

108

107

19

50.8

12.7

12.7

15.9

5

6.4

6.37

7.14

6.35

193

31.8

152

92.1

21

40

SN-GR-T140-2/B

140

102

101

28.6

50.8

17.5

14.5

17.5

5

6.4

6.37

7.14

6.35

193

31.8

152

92.1

21

40

SN-GR-T140-3/B

140

127

126

31.8

57.2

19

17.5

25.4

5

6.4

6.37

7.14

6.35

193

31.8

152

92.1

21

40





Machined Elevator Guide Rail Clamps CE ISO with SPEC(mm) 70*65*9 2

Machined Elevator Guide Rail Clamps CE ISO with SPEC(mm) 70*65*9 3



Machined Elevator Guide Rail Clamps CE ISO with SPEC(mm) 70*65*9 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
