Place of Origin: | China |
Brand Name: | SUNNY |
Certification: | 3C,CE |
Model Number: | Freight Elevator |
Minimum Order Quantity: | 1 Pcs |
---|---|
Price: | $7000~12000 |
Packaging Details: | container |
Delivery Time: | 15~30 days |
Payment Terms: | Western Union, T/T, L/C,Paypal |
Supply Ability: | 500 Set/ Year |
Name: | Freight Elevator | Load: | 1500~5000kg |
---|---|---|---|
Speed: | 0.25~1m/s | Door Type: | One Gate/Two Gate |
Model: | Freight Elevator | Used: | Machine Room |
Traction Machine: | Gearless Traction Machine | Keywords: | Passenger Elevator Lift |
High Light: | high speed lift,airport walking escalator |

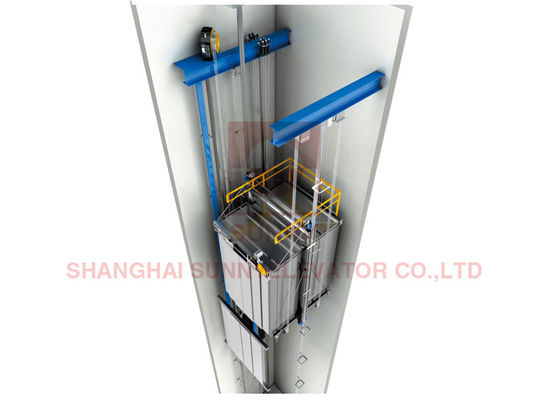

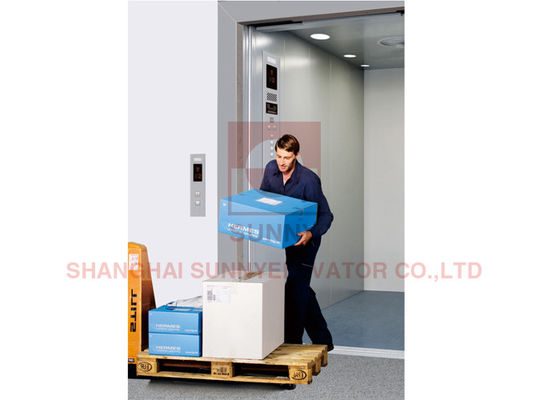

Goods Lift High Speed Elevator , Opposite Door Freight Elevator With Machine Room
Sturdy and durable
Accurate leveling
Easily merges with vast constructions
Easy and effective installation
Extensive application occasions
More Space, More Freedom
Only the elevator which has more and more building freedom has the luck to be favored by the building masters.
In order to change the influence of the traditional elevator with machine room to the building outline, SUNNY machine room-less freight elevator develops machine room-less products series. It can not occupy the space outside the well. it is compact in structure.
Energy-Saving
Variable frequency freight elevator applies VVVF voltage and speed modulation technology. It greatly reduces the elevator running power loss and power supply capacity loss. Compared with the traditional AC two-speed drag elevator, it saves 30% to 50%of energy.
More Powerful
SUNNY machine room-less freight elevator takes low carbon environment protection as design concept. It saves energy and reduces loss. It utilizes the well space to the greatest extent. It regards saving the building area and decreasing the building cast as ultimate goal. It gives a full play of green humane spirits of the products. Compared with geared elevator with same load level, it can save 40% of electric energy, 10% of building area.
Laod | Door Type | Speed | Car Dimension | Door-open Size | Hoistway Dimension | Max No. of Stops | Max Travel(m) | Power KW | Distance of Bracket Guide Rail(mm) | ||||||
DL(kg) | V(m/s) |
CW (mm) |
CD (mm) |
CH (mm) |
OP (mm) |
OPH (mm) |
Min HW( mm) |
Min HD(mm) | Min S(mm) | Min K(mm) | |||||
1500 | One gate | 0.5 | 1500 | 2250 | 2200 | 1400 | 2100 | 2900 | 2800 | 1700 | 4500 | 10 | 40 | 5.5 | 2000 |
1 | 15 | 60 | 11 | ||||||||||||
Two gate | 0.5 | 2750 | 10 | 40 | 5.5 | ||||||||||
1 | 15 | 60 | 11 | ||||||||||||
2000 | One gate | 0.5 | 1700 | 2400 | 1500 | 3000 | 3300 | 10 | 40 | 6.7 | |||||
1 | 15 | 60 | 13.4 | ||||||||||||
Two gate | 0.5 | 2900 | 10 | 40 | 6.7 | ||||||||||
1 | 15 | 60 | 13.4 | ||||||||||||
3000 | One gate | 0.5 | 2000 | 2800 | 1700 | 3500 | 3450 | 8 | 30 | 13.9 | |||||
1 | 15 | 60 | 15.8 | ||||||||||||
Two gate | 0.5 | 3300 | 8 | 30 | 13.9 | ||||||||||
1 | 15 | 60 | 15.8 | ||||||||||||
4000 | One gate | 0.25 | 3300 | 2000 | 3750 | 3900 | 1700 | 5200 | 4 | 15 | 6.5 | 1500 | |||
0.5 | 8 | 30 | 13 | ||||||||||||
Two gate | 0.25 | 3800 | 4 | 15 | 6.5 | ||||||||||
0.5 | 8 | 30 | 5 | ||||||||||||
5000 | One gate | 0.25 | 2400 | 3600 | 2400 | 2200 | 2300 | 4300 | 4200 | 4 | 15 | 8.7 | |||
0.5 | 8 | 30 | 5 | ||||||||||||
Two gate | 0.25 | 4100 | 4 | 15 | 8.7 | ||||||||||
0.5 | 8 | 30 |
Note: Reference only, for detail information, please contact SUNNY elevator.
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
