Elevator Speed Governor With Tension Device SN-SG-ZJ200 Featuring 12kg Balancing Weight for 50m≤H≤100m Applicable State and 12 Months Warranty

Large Image : Elevator Speed Governor With Tension Device SN-SG-ZJ200 Featuring 12kg Balancing Weight for 50m≤H≤100m Applicable State and 12 Months Warranty

Product Details:

Place of Origin:	China
Brand Name:	SUNNY
Certification:	CE,ISO9001
Model Number:	SN-SG-ZJ200

Payment & Shipping Terms:

Minimum Order Quantity:	1 Pcs
Price:	$50~120
Packaging Details:	Wooden box
Delivery Time:	7-15working days
Payment Terms:	Western Union,T/T,L/C,Paypal
Supply Ability:	1000 Pcs/ Month

Contact Now

Elevator Speed Governor With Tension Device SN-SG-ZJ200 Featuring 12kg Balancing Weight for 50m≤H≤100m Applicable State and 12 Months Warranty

Description

Name:	Elevator Safety Components	Type:	Elevator Parts
Use:	Elevator	Specifications:	Elevator Speed Governor With Tension Device
Model:	Speed Governor With Tension Device	Transportation Mode:	By Air
Warranty Time:	12 Months	Packing:	Standard Export Package
Product:	Speed Governor With Tension Device	Product Name:	Speed Governor With Tension Device
Highlight:	elevator safety parts , elevator part

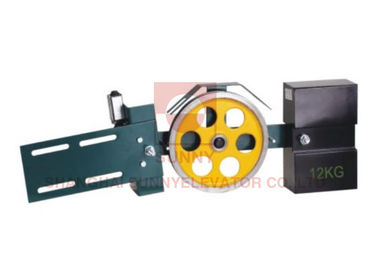

Elevator Safety Components Speed Governor With Tension Device SN-SG-ZJ200

This speed governor with tension device features a rope wheel specification that can be customized to match elevator overspeed governor requirements and actual usage conditions. Designed for easy installation, it is suitable for all pit depth configurations and various balancing specifications.

Key Parameters

The following parameters must be specified: rope wheel diameter, weight, quality, specifications, wire rope type, and matching guide rail type.

Category number	Rope wheel diameter	Match the steel wire rope	Quality of balancing	Applicable state
A01	200	Φ6/Φ6.3	12kg	H≤50m
A02			16kg	50m≤H≤100m
A03	240	Φ6/Φ6.3/Φ8	12kg	H≤50m
A04		Φ8	16kg	50m≤H≤100m

Frequently Asked Questions

Are the elevator wire ropes durable?

Elevator wire ropes have special provisions and requirements. Configuration considers not only wire rope and rated load, but also traction size. The tensile strength exceeds the elevator weight with a safety factor of at least four, ensuring simultaneous breakage won't occur.
Is it dangerous during sudden power failure?

The elevator will automatically stop using electrical and mechanical safety devices. Brakes engage automatically during power failure. Planned outages include prior notification from power supply departments.
Will we be hurt if doors close suddenly?

Doors automatically reopen when touched during closing. Anti-pinch switches prevent closure when obstructed, and closing force is carefully regulated for safety.
How does the elevator operate?

Elevators use counterweight wire ropes through traction drive systems to move vertically along guide rails.
Is escalator installation complicated?

Our integrated structure design makes escalators precise, efficient, and easier to commission without compromising functionality.
Do you have any certifications?

Yes, we hold ISO9001, CCC, and CE Certificates for our products.
