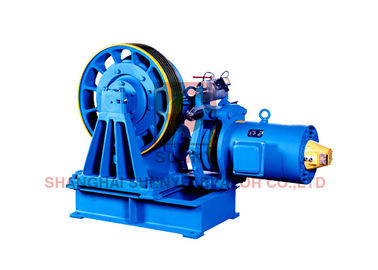

YJ245 Passenger Lift Geared Traction Machine 1000 / 2000kg Load 60m Max Lifting Height

YJ245 Passenger Lift Geared Traction Machine 1000 / 2000kg Load 60m Max Lifting Height

  • YJ245 Passenger Lift Geared Traction Machine 1000 / 2000kg Load 60m Max Lifting Height
  • YJ245 Passenger Lift Geared Traction Machine 1000 / 2000kg Load 60m Max Lifting Height
YJ245 Passenger Lift Geared Traction Machine 1000 / 2000kg Load 60m Max Lifting Height
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-YJ245
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 5000 Pcs/ Month
Contact Now
Detailed Product Description
Name: Geard Traction Machine Traction Ratio: 1:1、2:1
Load: 1000/2000kg Speed: 0.5、0.63、1.0m/s
Max.lifting Height: 60m Business Type: Manufacturer
Transportation: Sea Delivery Applicable: Elevator Equipment
Product: Geard Traction Machine Model: Geard Traction Machine
High Light:

elevator traction motor

,

VVVF motor

YJ245 Passenger Lift Dumbwaiter Geared Elevator Traction Machine / Elevator Parts

YJ245 Passenger Lift Geared Traction Machine 1000 / 2000kg Load 60m Max Lifting Height



Traction ratio:1:1,2:1

Rated capacity:1000,2000kg

Rated elevator speed:0.5,0.63,1.0m/s

Max.lifting height:60m

Noise level:<65dB(A)

Torsional vibration:<3.0mm/s

Horizontal and vertical vibrations:<0.8mm/s

Brake voltage:DC 110V for brake opening, and DC110V or DC55V for brake holding

Arrangement:only left side



Specification

Speed

(m/s)

Load

(kg)

Static

Capacity

(kg)

Reduction

Ratio

Traction

Ration

Traction

Sheave

Power

(kw)

Motor

Speed

(r/min)

Power

Source

(V/Hz)

Current

(A)

Weight

(kg)

A-Ⅱ 0.5 1000 6000 1:61 1:1 610-5-13 7.5 967 380/50 15.8 598
B-VI 1.0 1000 6000 2:61 1:1 610-5-13 11 967 380/50 22.9 598
B-V 0.63 2000 6000 2:61 2:1 610-5-13 13 1300 380/45 26.4 598



Overall dimensions and mounting dimensions

YJ245 Passenger Lift Geared Traction Machine 1000 / 2000kg Load 60m Max Lifting Height 0

YJ245 Passenger Lift Geared Traction Machine 1000 / 2000kg Load 60m Max Lifting Height 1



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
