AC300V Wire Cable Elevator Accessories With PVC Insulation

AC300V Wire Cable Elevator Accessories With PVC Insulation

  • AC300V Wire Cable Elevator Accessories With PVC Insulation
  • AC300V Wire Cable Elevator Accessories With PVC Insulation
AC300V Wire Cable Elevator Accessories With PVC Insulation
Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Cable
Payment & Shipping Terms:
Minimum Order Quantity: 100meters
Price: Negotiation
Packaging Details: in Carton Box
Delivery Time: 7~15 days
Payment Terms: L/C, Western Union, T/T
Supply Ability: 50000 meters/week
Contact Now
Detailed Product Description
Name: Cable Transportation: DHL TNT FEDEX
Warranty Time: 12 Months Applicable: Elevator Equipment
Category: Elevator Parts Rated Voltage: AC 300/500V
High Light:

PVC Insulation Elevator Electrical Parts

,

AC300V Elevator Electrical Parts

,

PVC Sheath Elevator Electrical Parts

Elevator Electric Wire And Cable With PVC Insulation And PVC Sheath

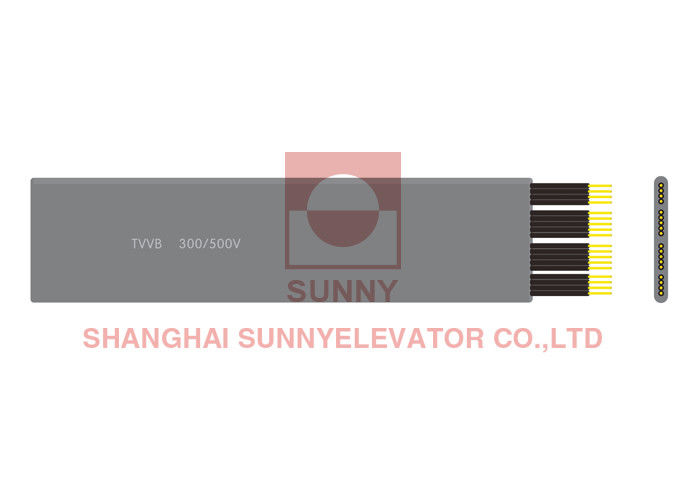

Traveling Cable

Insulation and Sheath:PVC insulation, PVC sheath.
Temperature:70C.
Prouduct standard:GB/T 5023.6,IEC 60227-6. EN 50214;

Type Specification Weight approx(kg/m) Uo/U(V) Installation Loop diameter Product certification
TVVB 3*0.75 0.08 300/500 280±50 320±50 3C,CE,RoHS
TVVB 6*0.75 0.17 300/500 280±50 320±50 3C,CE,RoHS
TVVB 12*0.75 0.31 300/500 280±50 320±50 3C,CE,RoHS
TVVB 18*0.75 0.45 300/500 280±50 320±50 3C,CE,RoHS
TVVB 24*0.75 0.57 300/500 280±50 320±50 3C,CE,RoHS

Note:We could manufacture the cable accordance with the equirement of customers.



Round Cable

Insulation and Sheath:PVC insulation, PVC sheath.
Temperature:70C.
Prouduct standard:GB/T 5023.5- 2018,IEC 60227-1;


Type Specification Lower limited diameter(mm) Upper limited diameter(mm) Uo/U(V) Product certification
RVV 6*0.75 6.5 9.6 300/500 3C,CE,RoHS
RVV 7*0.75 6.5 9.6 300/500 3C,CE,RoHS
RVV 15*0.75 10.7 14 300/500 3C,CE,RoHS
RVV 2*0.75+1*2 6.3 8.5 300/500 3C,CE,RoHS
RVV 5*0.75+1*2 7.7 9.5 300/500 3C,CE,RoHS



AC300V Wire Cable Elevator Accessories With PVC Insulation 0



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
