Product Details:
|
| Name: | Elevator Push Button | Shape: | Round |
|---|---|---|---|
| Size: | Φ45x20mm | Current: | 50 MA |
| Color: | Red,Green,White,Yellow,Orange,Blue | Voltage: | 12-24 V |
| Model: | Elevator Push Button | Type: | Elevator Push Button |
| High Light: | lift push buttons,braille lift buttons |
||

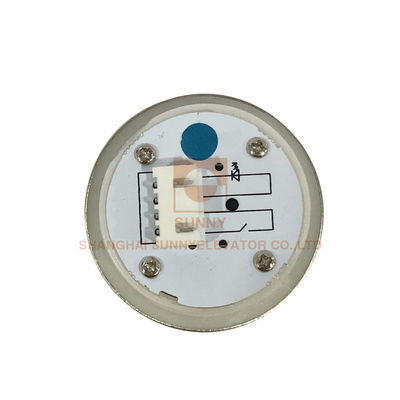

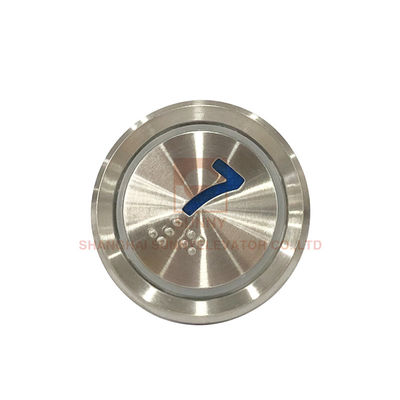

12 - 24 V LED Elevator Push Button Signal Type Round , Size Φ45x20 mm (SN-PB960)
1. Surface with stainless steel filled with transparent resin. (Braille available)
2. Installed by screw structure, suitable for 2-6mm panel.
3. Signal type: 'digits', 'up', 'down', 'close', 'open', 'alarm', 'intercom' and so on.
4. Illumination Color: bright yellow, fashion orange, ruby red, ivory white, venetian blue, emerald green.
5. Switch life time: 3,000,000 times
| Size: | Φ45x20mm |
| Material: | Stainless decorating frame; stainless plate; tact switches; front embedded, the reverse side will be inserted into slot;Button is optional. |
|
Specification Item |
Detail |
|
Conformity |
EN81-70 |
|
Current |
50mA |
|
HUMIDITY |
45%~90% |
|
Inner switch brand |
Imported OMRON-5 series |
|
IP |
IP64 |
|
Life time |
3, 000, 000 tims |
|
Lighting color |
Red (standard), blue, white, orange, yellow(optional) |
|
Pushing pressure |
2-3.5N |
|
Temperature |
-10~50° C |
|
Voltage |
24DCV(standard), 12DCV, 48DCV ± 10% |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
