Product Details:
|
| Name: | Single Arrangement K Escalator | Speed: | 0.5m/s |
|---|---|---|---|
| Height: | H≤6000mm | Angle: | 35° |
| Model: | Single Arrangement K Escalator | Warranty: | 12 Months After Shipping |
| Material: | Stainless Steel 304 | Control System: | VVVF Elevator Control System |
| Product: | Single Arrangement K Escalator | ||
| High Light: | high speed lift,building lifts elevators |
||

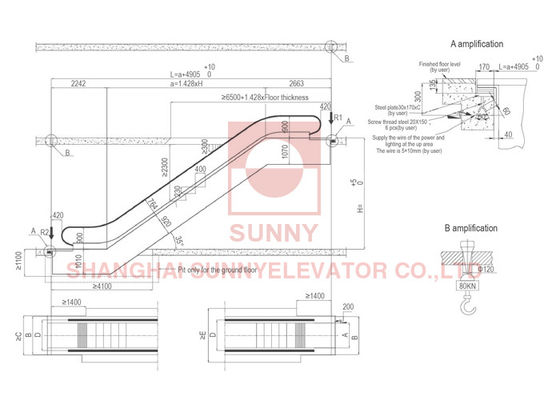

SN-XDM35° Single arrangement K escalator construction sketch(indoor)
Indoor / Outdoor 35 ° / 30 ° Single Arrangement K Escalator 0.5m/S
Reacting force
| Step width | 600 | 800 | 1000 | Remarks |
| R1(KN) | 3.5xL+15.5 | 4xL+17 | 4.5xL+18.5 | The unit of L is M |
| R2(KN) | 3.5xL+10 | 4xL+11 | 4.5xL+11.5 |
Table of Rules of Extension Interior Escalator’s Upper Part
| Power | |||||
| Step width | ＜15KW | 15KW | 2x11KW | 2x15KW | |
| NO VVVF | 600 | 417 | 417 | / | / |
| 800 | 0 | 0 | 500 | / | |
| 1000 | 0 | 0 | 500 | 800 | |
| VVVF | 600 | 417 | 417 | / | / |
| 800 | 0 | 200 | 500 | / | |
| 1000 | 0 | 0 | 500 | 800 | |
Power meter(Step width 1000mm speed 0.5m/s)
| 5.5KW | 8KW | 11KW |
| 1.5m≤H≤3.5m | 3.5m＜H≤5.0m | 5.0m＜H≤6.0m |
Standard specification and dimension
| Model | XDM-600K | XDM-800K | XDM-1000K | |
| Step width | A | 600 | 800 | 1000 |
| Decorative width | B | 1140 | 1340 | 1540 |
| Construction Open width | C | 1200 | 1400 | 1600 |
| Handrail spacing | D | 838 | 1038 | 1238 |
| Construction Open width | E | 1778 | 1978 | 2178 |
Specification(Single-row room1500 type)
| Model | SN-XDM/SN-XCM/SN-XFT35-600K | |
| SN-XDM/SN-XCM/SN-XFT35-800K | ||
| SN-XDM/SN-XCM/SN-XFT35-1000K | ||
| Speed | 0.5m/s | |
| Height | H≤6000mm | |
| Angle | 35° | |
| Support forceR1 | KN | |
| Support forceR2 | KN | |
| Weight | KN | |
| Power supply | Power | Three-phase AC 380V 50Hz |
| Illumination | Single phase AC 220V 50Hz | |
