| Name: | STEP Elevator Integrated Drive | Elevator Speed: | ≤1.75m/s |
|---|---|---|---|
| Floor: | 2-9 | Communication Method: | Parallel |
| Used: | Elevator Control Cabinet | Model: | Elevator Integrated Drive |
| Applicable: | For Mr And Mrl | Category: | Elevator Controller |
| Type: | Elevator Controller | Product: | Elevator Controller |
| High Light: | elevator control panels,elevator controller |
||

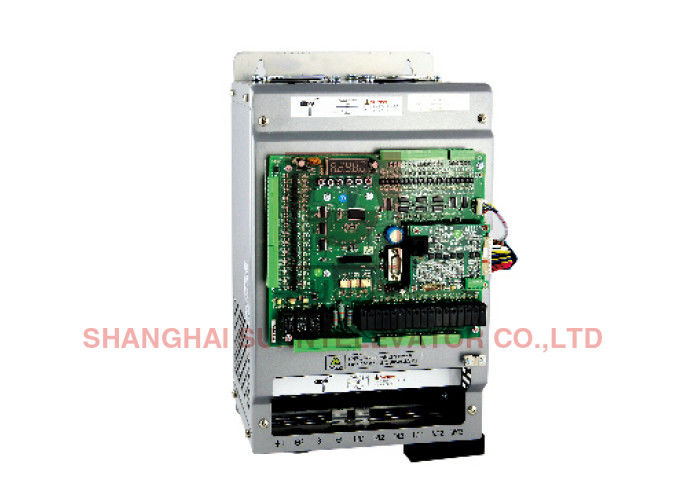

STEP Freight Elevator integrated drive controller AS360
STEP Freight Elevator Control Cabinet Elevator Integrated Drive Controller AS360
· Based on elevator drive, elevator control and motor three best match
· The hardware adopts the 6th generation new module, the junction temperature can reach 175 ℃, the switching and opening loss is low, prolongs the service life
Dual 32-bit embedded microprocessors together to complete elevator operation and motor drive control
Redundant safety design, control processor and drive processor dual safety protection, to achieve the strongest security elevator operation
Full parallel output
· Anti-interference ability design exceeds the highest level of industrial design requirements
With rich, advanced elevator operation function, can fully meet the various needs of customers
· Passed CE, "Safety circuit with electronic components elevator"; and GB7588-2003 12.7.3 in the parking current detection of the certification, the control cabinet can achieve only one main contactor.
| TYPE-AS360 | Rated Capacity(KVA) | Rated output current(A) | Fit motor(KW) |
| 200V | |||
| 2T02P2 | 4.6 | 12 | 2.2 |
| 2T03P7 | 6.9 | 18 | 3.7 |
| 2T05P5 | 9.5 | 25 | 5.5 |
| 2T07P5 | 12.6 | 33 | 7.5 |
| 2T0011 | 17.9 | 47 | 11 |
| 2T0015 | 23 | 60 | 15 |
| 2T18P5 | 29 | 75 | 18.5 |
| 2T0022 | 32 | 80 | 22 |
| TYPE-AS360 | Rated Capacity(KVA) | Rated output current(A) | Fit motor(KW) |
| 400V | |||
| 4T02P2 | 4.7 | 6.2 | 2.2 |
| 4S03P7 | 6.9 | 9 | 3.7 |
| 4T05P5 | 8.5 | 13 | 5.5 |
| 4T07P5 | 14 | 18 | 7.5 |
| 4T0011 | 18 | 27 | 11 |
| 4T0015 | 24 | 34 | 15 |
| 4T18P5 | 29 | 41 | 18.5 |
| 4T0022 | 34 | 48 | 22 |
| 4T0030 | 50 | 65 | 30 |
| 4T0037 | 61 | 80 | 37 |
| 4T0045 | 74 | 97 | 45 |
| 4T0055 | 98 | 128 | 55 |
| 4T0075 | 130 | 168 | 75 |
| TYPE-AS380- | A(mm) | B(mm) | H(mm) | W(mm) | D(mm) | Install the apertureΦ(mm) | Install | Torque(Nm) | Weight(kg) | ||
| Bolt | Nut | Washer | |||||||||
|
2T05P5 2T07P5 2T0011 |
165.5 | 357 | 379 | 222 | 185 | 7.0 | 4M6 | 4M6 | 4Φ6 | 3 | 8.2 |
|
2T0015 2T18P5 2T0022 |
165 | 440 | 465 | 254 | 261 | 7.0 | 4M6 | 4M6 | 4Φ6 | 3 | 10.3 |
|
4T02P2 4T03P7 4T05P5 |
100 | 288.5 | 300 | 160 | 166 | 5.0 | 4M4 | 4M4 | 4Φ4 | 2 | 4.5 |
|
4T07P5 4T0011 |
165.5 | 357 | 379 | 222 | 192 | 7.0 | 4M6 | 4M6 | 4Φ6 | 3 | 8.2 |
|
4T0015 4T18P5 4T0022 |
165.5 | 392 | 414 | 232 | 192 | 7.0 | 4M6 | 4M6 | 4Φ6 | 3 | 810.3 |
| 4T0030 | 200 | 512 | 530 | 330 | 290 | 9.0 | 4M8 | 4M8 | 4Φ8 | 6 | 30 |
| 4T0037 | 200 | 512 | 530 | 330 | 290 | 9.0 | 4M8 | 4M8 | 4Φ8 | 9 | 30 |
| 4T0045 | 200 | 587 | 610 | 330 | 310 | 10.0 | 4M8 | 4M8 | 4Φ8 | 9 | 30 |
| 4T0055 | 200 | 587 | 610 | 330 | 310 | 10.0 | 4M10 | 4M10 | 4Φ10 | 14 | 42 |
| 4T0075 | 320 | 718 | 750 | 430 | 351 | 13.0 | 4M13 | 4M13 | 4Φ13 | 29 | 79.5 |
