Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S

Certification
China SHANGHAI SUNNY ELEVATOR CO.,LTD certification
China SHANGHAI SUNNY ELEVATOR CO.,LTD certification
Customer Reviews
Service is people-oriented and honesty is the most attractive. It's a pleasure to cooperate with you

—— Millay

I'm Online Chat Now

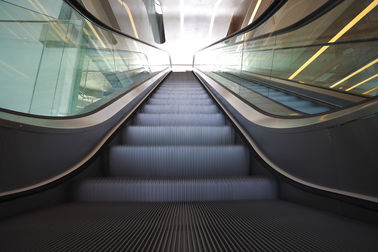

Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S

Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S
Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S
Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S

Large Image :  Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Escalator
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $7000-$12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500set/year

Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S

Description
Name: Escalator For Shopping Malls, Office Speed: 0.4m/S
Application: Shopping Malls, Office Moving Walk: 800, 1000, 1200
Model: Escalator Warranty: 12 Months
Control System: VVVF Control System Usage: Subway/Airport /Shopping Mall Moving Walk
Product: Moving Walk Escalator Type: Moving Walk Escalator
Product Name: Moving Walk Escalator
High Light:

airport moving walkway

,

airport walking escalator



Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S



Commercial elevator, adopted with angle truss with firm structure to ensure the large load capacity and stable running. Double running direction structure of steps makes stable running and little friction between panels.
The Microprocessor automatic lubricator system, which is adopted in automatic sidewalk, ensures excellent lubrication condition.
Adopts Japan Mitsubishi PLC has excellent anti-interference (significant immunity), reliable operation, low fault rate. Safety, comfortable and elegant escalator with stable, low noise, durable easy maintenance, and also within generous construction, excellent steps, exquisite handrail belt, and elegant shape and modern design style brings you leisurely and pleasure .


Over speed and unintentionally reversal running direction protect Main board determine the running speed normal or not according to signal from inspection parts, if signal is not correct, escalator stop.
Break release safety device When escalator running, break not release, then escalator stop and alarm rings; When escalator not running, but break release, alarm rings.
Flywheel protection If flywheel doesn't close correctly, escalator stops running.
Step or panel sagging guard When any of step and panel sagging, escalator stops running.
Step chain and anti-loose safety device When step chain break or abnormal elongation occurs, escalator stops running
Step lost safety device If device sensor detect step lost, escalator stops running.
Cover decoration by user Also provide stainless steel cover for choose.
Skirt board safety device Set in both side of skirt boards, to prevent passenger cloths is nipped into the gap.
Comb plane safety device When something blocks the comb plant and the steps, escalator stops running.


Escalator technology parameter

Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S 0



Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S 1



Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S 2



Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S 3



Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S 4



Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S 5



Shopping Malls , Office Moving Walk Escalator Angle 30 Deg Speed 0.4m / S 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
