Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Car Elevator
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $7000-12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year

Car Residential Home Elevators Speed 0.25m / S Simple Operation And Infraredprotection

Description
Name: Car Residential Home Elevators Load: 5000kg
Speed: 0.25m/s Pit Depth: 1500mm
Top Floor Height: 4500mm Elevator Door: Side Door
Product Name: Passenger Lift Traction Machine: Gearless Traction Machine
Model: Car Residential Home Elevators Type: Car Residential Home Elevators
High Light:

high speed lift

,

airport walking escalator

Car Residential Home Elevators Speed 0.25m / S Simple Operation And Infraredprotection

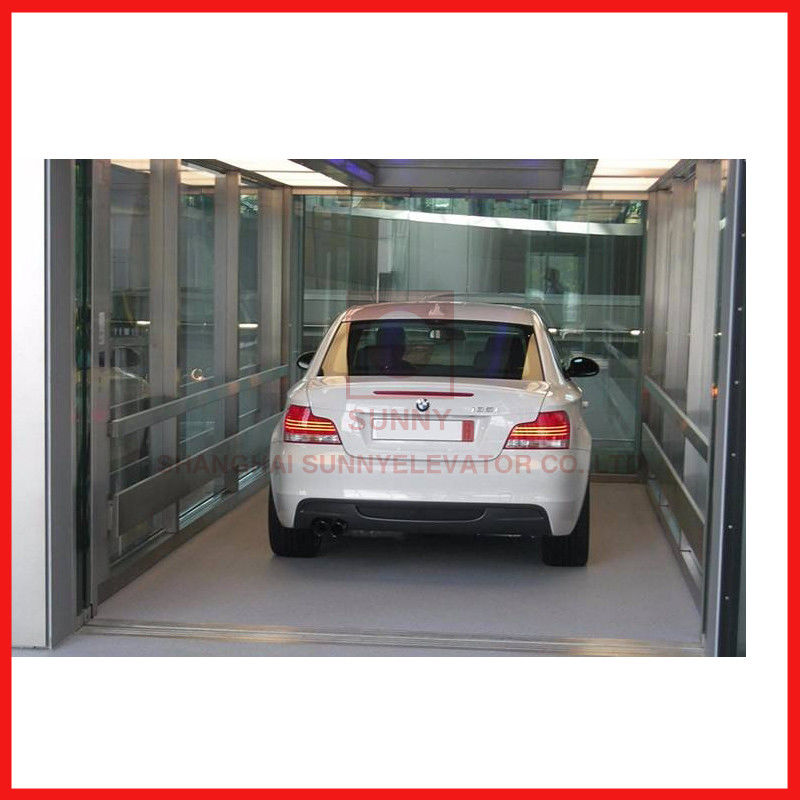

Speed 0.25m/s simple operation and infraredprotection of car elevator
Humanized design and considerate
Simple operation
Infrared protection
Safe and anti-skid
Shock absorption and noise reduction

Our car elevator boasts considerate humanized design.It starts from details to care about your beloved car.For this reason, it has become an ideal choice for car 4S shops, large parking garages and large shopping malls.



Car elevator construction parameters

Load(kg) Speed(m/s) Door opening size(mm) Exit and entrance Car size(mm) Hoistway size(mm)

Machine

room size(mm)

Top floor height(mm)

Pit depth

(mm)

Max.

travelling height(m)

3000 0.25 center-opening &double-folded
2600*2100
without through door

2600*

5700*2200

4250*6200

4250*

6200*2800

4500 1500 15
through door
4000 0.25 center-opening &double-folded
2800*2100
without through door

3300*

6000*2200

4700*6500

4700*

6500*2800

4500 1500 15
through door
5000 0.25 center-opening &double-folded
2800*2100
without through door

3300*

7000*2200

4700*7500

4700*

7500*3000

4500 1500 15
through door



Car Residential Home Elevators Speed 0.25m / S Simple Operation And Infraredprotection 0



Car Residential Home Elevators Speed 0.25m / S Simple Operation And Infraredprotection 1



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
