Product Details:
|
| Name: | Elevator Traction Sheave | Used: | Elevator Parts |
|---|---|---|---|
| Model: | Elevator Traction Sheave | Shaft Dia: | Φ240mm |
| Dia: | Φ25mm | Rope&Pitch: | 2xΦ8x20 |
| Product Name: | Elevator Traction Sheave | Applicable: | Elevator Equipment |
| Product: | Elevator Traction Sheave | ||
| High Light: | elevator spare part,elevators components |
||

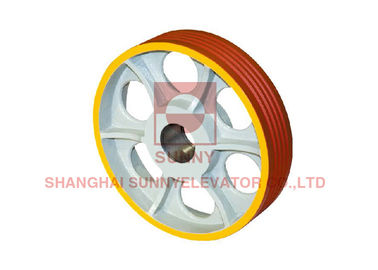

Deflector Elevator Traction Sheave Dia Φ25mm With Ce Iso9001 Certification
Deflector Sheave
| Shaft DIa ΦD(mm) | Dia ΦD(mm) | Rope&Pitch | Sheave Width A | U Bolt |
| Φ240 | Φ25 | 2xΦ8x20 | 40 | M12 |
| 3xΦ8x14 | 52 | |||
| Φ320 | Φ25 | 2xΦ8x20 | 40 | M12 |
| Φ35 | 3xΦ8x14 | 52 | ||
| 4xΦ8x14 | 70 | |||
| Φ400 | Φ50 | 3xΦ10x15 | 55 | M16 |
| 4xΦ10x15 | 70 | |||
| 5xΦ10x15 | 90 | |||
| 6xΦ10x15 | 100 | |||
| Φ480 | Φ50 | 3xΦ12x18 | 65 | M16 |
| 4xΦ12x18 | 85 | |||
| 5xΦ12x18 | 100 | |||
| Φ520 | Φ55 | 4xΦ13x20 | 90 | M16 |
| 5xΦ13x20 | 110 | |||
| Φ640 | Φ60 | 5xΦ16x25 | 135 | M16 |
| 6xΦ16x25 | 155 | |||
| Φ85 | 8xΦ16x25 | 220 |
Design the length of the shaft(L1,L2)according to the traction machine
Advantages:
1. Factory passed ISO9001
2. We've exported to many countries, and built stable business relationships with customers from over 30 countries.
3. We get highly trusted about the quality from our customers.
4. Our policy is to offer our customers direct and complete support, in terms of materials, components and services provided before and after every sale.
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
