|Place of Origin:||China|
|Model Number:||Car Controller Board|
|Minimum Order Quantity:||1 Pcs|
|Packaging Details:||Standard Export Package|
|Delivery Time:||15~30 days|
|Payment Terms:||L/C, T/T, Western Union|
|Name:||Car Controller Board||Speed:||4m/s|
|Type:||Elevator Parts||Category:||Elevator Parts|
lift lcd display

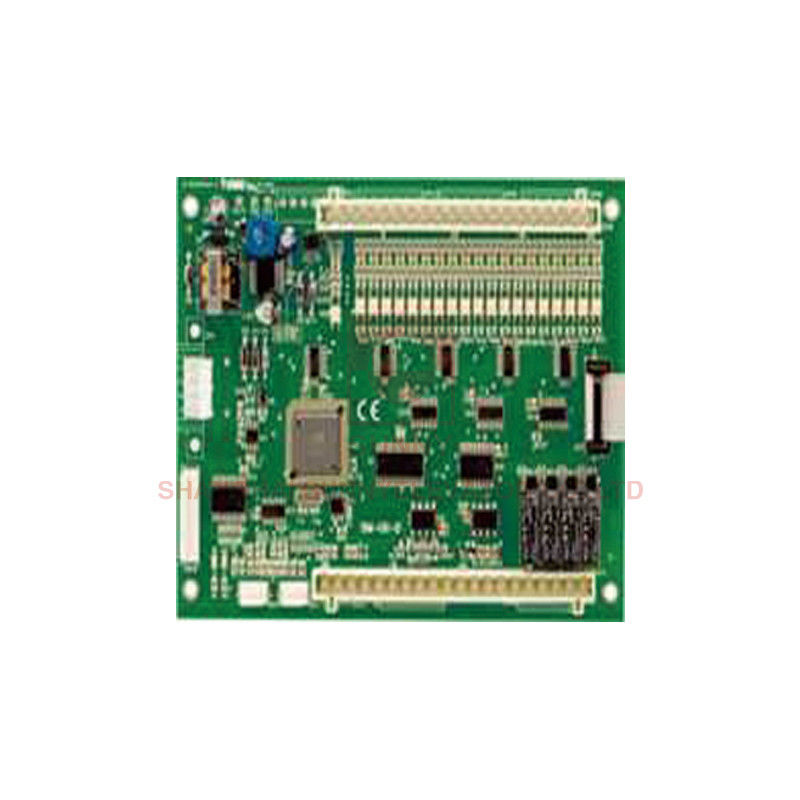

STEP Car Controller Board for passenger elevator
The car controller board uses CANBUS serial communication method, so it features simple wire connection and helps save connection cables. Meanwhile, it has great anti-electromagnetic interference ability and anti static performance, and can offer overcurrent protection function.
The car controller board has various signal outputs which enable it to offer various functions, including car arrival gong, car lighting control, car nudging, overload indicator, and buzzer alarming functions. Meanwhile, it comes with a voice announcer to remind passengers the arrivals. It supports at most 8 SM-03 car command boards to allow elevators to go up to maximally 64 floors. In addition, the car controller board has connection ports for door opening and closing buttons, and is designed with light curtain safety protection function and a safety touch panel switch.
|1. Elevator car control board offers signal output for arrival gong, car lighting control, forced door closing, overload indicator, buzzer alarming function, etc.|
|2. Connection points for door opening and door closing buttons|
|3. Safety touch switch and light curtain switch for front and rear door|
|4. Available for serial and parallel lou;dspeaker|
|5. Maximum 8 pieces of SM-03 car command boards to allow elevators to go up to 64 floors.|
|6. CAN Bus serial communication method|
|7. In-car debugging available|
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
