|Place of Origin:||China|
|Model Number:||Passenger elevator|
|Minimum Order Quantity:||1Set|
|Delivery Time:||15~30 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||500 Set/ Year|
|Name:||Small Machine Room Passenger Elevator||Load:||450~1350kg|
|Elevator Type:||Passenger Elevators||Drive Type:||VVVF|
|Traction Machine:||Permanent Magnet Synchronous Gearless||Control System:||VVVF Elevator Control System|
high speed lift,
building lifts elevators

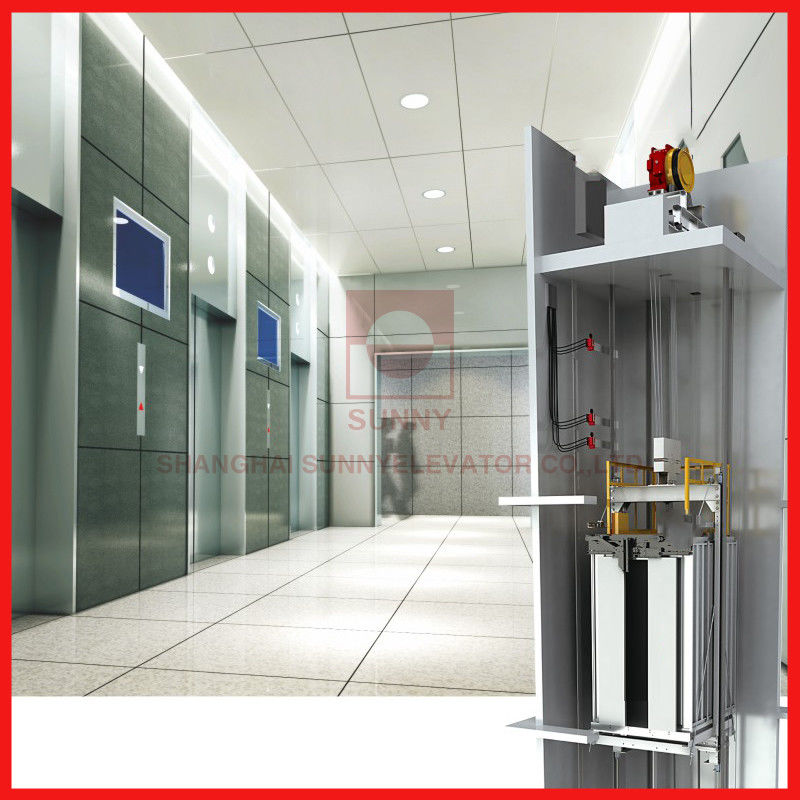

Small Machine Room Passenger Elevator with Compactdesign and Energy Saving
Space-creating fulfills great splendors
Small machine room passenger elevator inherited the modern highly sophisticated technology,based on the improved elevator system reliability and flexibility to achieve a truly environmentally and energy-saving adbantages.
Small machine room passenger elevator is compared with the usual machine room, with a reasonable layout construction, making room area as large as the hoistwang reaches saves floor space, while reducing the apperaance of the engine room of the building-specific effects on the appearance. It can be adapted to the requirements of a particular building construction matter, not only reduces the cost of construction, but also help to stimulate architects inspired to create blocks of magnificent works of art.
Small machine room passenger elevator is a kind of elevator with new concept, which is for improving the construction value. The area of machine room can be reduced by more than 50% than traditional elevator, so it saved construction space and increased useful space.
Small machine room passenger elevator use permanent magnetic synchronous gearless traction machine, featuring high effective and energy saving.It save by 33% energy than the gear traction machine for the same capacity. The best design comprising special designed control cabinet with samll size and the most advanced with lower loss makes the layout of the machine room perfect.
|Passenger||Load||Speed||Car size||Door size||Shaft||Pit depth||Overhead height||Stops||Rise|
Small Machine Room Passenger Elevator Construction Layout Drawing
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
